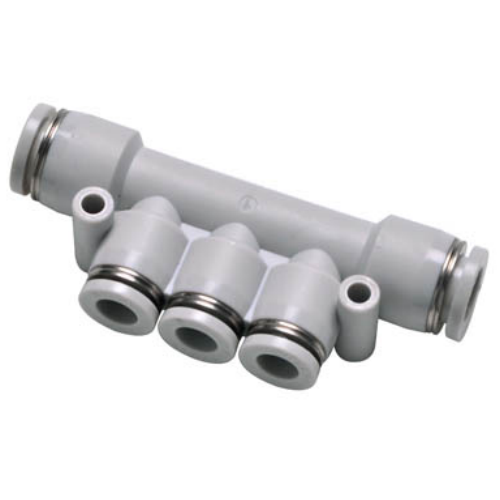

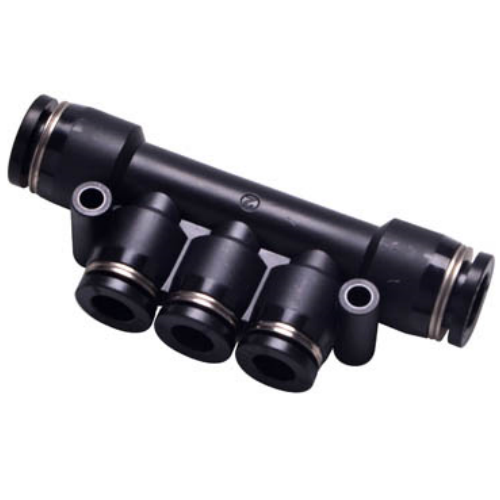

Airtac APK Five-way Fitting APK6
2. Available in multiple specifications with extensive compatibility across pneumatic systems;
3. Features optimized flow geometry allowing full-bore throughput equivalent to connected tubing's inner diameter;
4. Incorporates push-to-connect mechanism for tool-free tubing installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Five-Way Manifold Fittings | Brand: AIRTAC | Series: APK
AirTAC APK6 5-Port Connector Technical Specifications
- Model: APK6 (Standard Thread Type)
- Thread specification: PT1/8 (BSPP) / M5×0.8 optional
- Material: Brass with nickel plating (anti-corrosion treatment)
- Seal material: NBR (Nitrile) / FKM (Fluorocarbon) optional
- Operating pressure: 0.2-1.0 MPa (29-145 PSI)
- Burst pressure: ≥3.0 MPa (435 PSI)
- Temperature range: -5℃ to 80℃ (NBR) / -20℃ to 150℃ (FKM)
- Port configuration: 1 inlet (P), 2 outlets (A/B), 2 exhausts (EA/EB)
- Flow rate: 350 NL/min (at 0.5 MPa)
- Weight: 24g ±1g (without seals)
- Dimensions: 21mm(W) × 21mm(D) × 26mm(H)
- Surface roughness: Ra ≤3.2μm (sealing surfaces)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
High-density 5-port pneumatic manifold designed for compact valve terminal systems. Features dual exhaust ports for rapid cylinder retraction and precision-machined flow channels to minimize pressure drop. The 360° rotatable ports enable flexible piping arrangements in confined spaces. Compatible with ISO 15407-1 standard valves.
- Modular pneumatic control cabinets
- Robotic end-effector tooling systems
- Medical device pneumatic circuits
- Packaging machine multi-actuator control
- Laboratory automation test stands
Installation guidelines:1. Use 8-10Nm torque with 12mm wrench during assembly
2. Apply thread sealant only on male threads (avoid PTFE tape)
3. Maintain 0.5mm minimum clearance between stacked units
4. For vertical mounting, position exhaust ports downward
5. Pressure test at 1.5×max operating pressure before commissioning
