Airtac APK Five-way Fitting APK8
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APK8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout

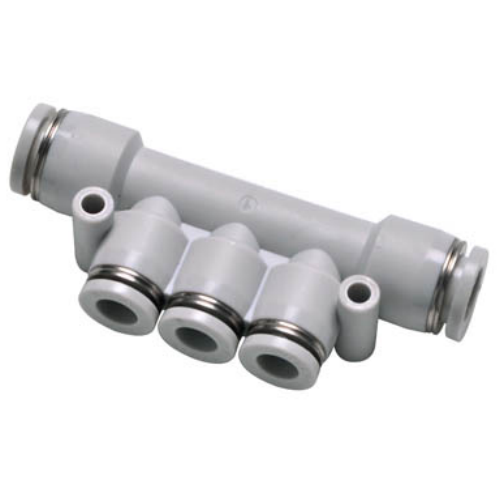

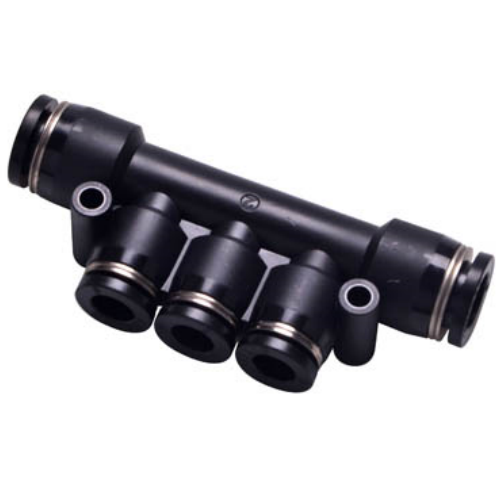

Description
1. The entire series is copper-free, enabling direct application in copper-restricted environments;
2. Available in multiple specifications with extensive compatibility across pneumatic systems;
3. Features optimized flow geometry allowing full-bore throughput equivalent to connected tubing's inner diameter;
4. Incorporates push-to-connect mechanism for tool-free tubing installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Five-Way Manifold Fittings | Brand: AIRTAC | Series: APK
Installation guidelines:
Apply 2-3Nm torque during installation using parallel-jaw wrenches.
Use PTFE tape on male threads only. Perform pressure test at 0.8MPa
for 5 minutes before full operation. Avoid overtightening - maximum
allowable deformation 0.1mm.
2. Available in multiple specifications with extensive compatibility across pneumatic systems;
3. Features optimized flow geometry allowing full-bore throughput equivalent to connected tubing's inner diameter;
4. Incorporates push-to-connect mechanism for tool-free tubing installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Five-Way Manifold Fittings | Brand: AIRTAC | Series: APK
AirTAC APK8 5-Way Connector Technical Specifications
- Model: APK8
- Type: 5-port pneumatic connector (1 input, 4 outputs)
- Thread standard: G1/8 (ISO228-1 compliant)
- Material: Nickel-plated brass body
- Seal material: NBR/FKM optional
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Port spacing: 18mm center-to-center
- Weight: 24g ±0.5g
- Dimensions: 25mm(L) × 25mm(W) × 25mm(H)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
High-density modular connector designed for compact pneumatic systems, featuring corrosion-resistant nickel plating and precision-machined ports. The 45° angled exhaust ports enable space-efficient manifold configurations. Compatible with ISO 15407-1 standard actuators.
Typical Applications:
- Multi-cylinder pneumatic control systems
- Automated assembly line manifolds
- PLC-controlled packaging machinery
- Robotic end-effector air distribution
- Medical device pneumatic circuits
Installation guidelines:
Apply 2-3Nm torque during installation using parallel-jaw wrenches.
Use PTFE tape on male threads only. Perform pressure test at 0.8MPa
for 5 minutes before full operation. Avoid overtightening - maximum
allowable deformation 0.1mm.
| Property | Property Value |
|---|---|
| sku | APK8 |
