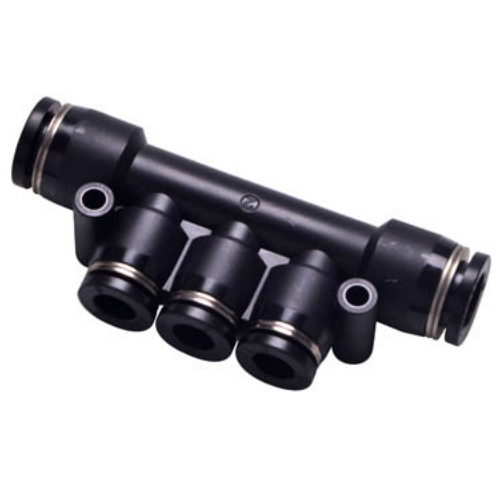

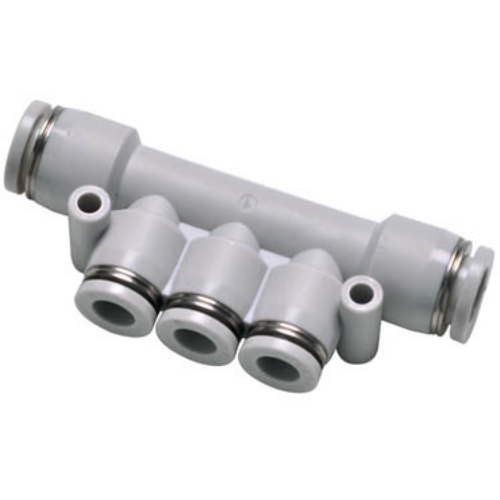

Airtac APKD Threaded 5-Way Fitting APKD12-04
$9.01
Regular price
$16.51
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APKD12-04
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple models/specifications, widely applicable to various pneumatic systems;
2、Superior flow performance with a capacity matching the inner diameter of pneumatic tubing;
3、Tool-free tube insertion/extraction ensures quick and secure connections, offering reliable and long-lasting tubing integration;
4、Sealant-coated threads and M5 metric threads with integrated sealing washers guarantee leak-proof threaded connections;
5、Nickel-plated brass body provides enhanced corrosion and contamination resistance for extended application versatility.
Category: Threaded 5-Way Fitting , Brand: Airtac , Series: PKD
Installation note:
Apply 360° thread sealant (LOCTITE 577 recommended) on male threads.
Tightening torque: 8-10 N·m. Avoid overtightening - maximum allowable
deformation tolerance: 0.05mm. Use backup wrench on hex flats during assembly.
2、Superior flow performance with a capacity matching the inner diameter of pneumatic tubing;
3、Tool-free tube insertion/extraction ensures quick and secure connections, offering reliable and long-lasting tubing integration;
4、Sealant-coated threads and M5 metric threads with integrated sealing washers guarantee leak-proof threaded connections;
5、Nickel-plated brass body provides enhanced corrosion and contamination resistance for extended application versatility.
Category: Threaded 5-Way Fitting , Brand: Airtac , Series: PKD
AirTAC APKD12-04 5-Way Threaded Manifold Specifications
- Model: APKD12-04
- Type: 5-port threaded manifold (1 input, 4 outputs)
- Thread standard: PT1/8 (BSPP) female ports
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-rings
- Max working pressure: 1.0 MPa (145 psi)
- Proof pressure: 1.5 MPa
- Temperature range: -5℃ to 80℃
- Weight: 48g ±2g
- Dimensions: 38mm(L) × 32mm(W) × 26mm(H)
- Port configuration: Central P port + 4 A/B ports
- Surface treatment: Electroless nickel plating (8-12μm)
- Compliance: RoHS compliant
High-density flow distribution block with precision-machined internal channels (Φ3.5mm bore) for minimal pressure drop. Features anti-vibration thread design with 30% increased torque resistance compared to standard fittings. Compatible with ISO 1179-2 and JIS B8371 standards.
Typical Applications:
- Compact pneumatic valve island assemblies
- Multi-actuator control in robotic grippers
- Modular pneumatic test benches
- Air distribution in CNC tool changers
- Medical device pneumatic circuits
Installation note:
Apply 360° thread sealant (LOCTITE 577 recommended) on male threads.
Tightening torque: 8-10 N·m. Avoid overtightening - maximum allowable
deformation tolerance: 0.05mm. Use backup wrench on hex flats during assembly.
| Property | Property Value |
|---|---|
| sku | APKD12-04 |
