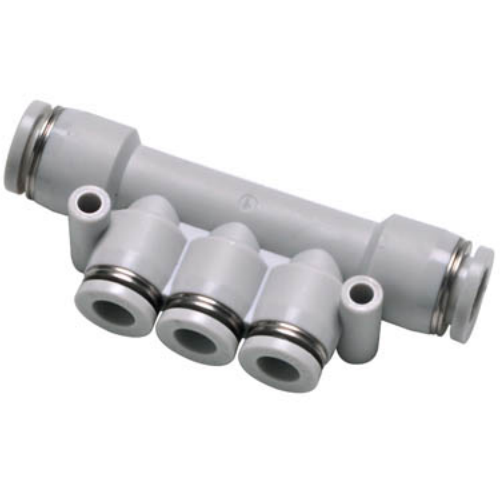

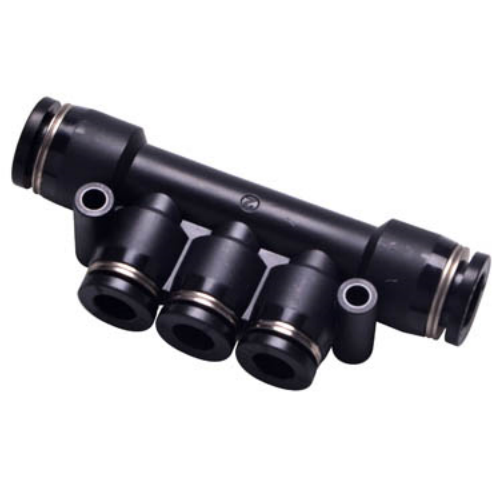

Airtac APKD Threaded 5-Way Fitting APKD8-6-02
2、Superior flow performance with a capacity matching the inner diameter of pneumatic tubing;
3、Tool-free tube insertion/extraction ensures quick and secure connections, offering reliable and long-lasting tubing integration;
4、Sealant-coated threads and M5 metric threads with integrated sealing washers guarantee leak-proof threaded connections;
5、Nickel-plated brass body provides enhanced corrosion and contamination resistance for extended application versatility.
Category: Threaded 5-Way Fitting , Brand: Airtac , Series: PKD
AirTAC APKD Threaded 5-Way Fitting APKD8-6-02 Technical Details
- Model: APKD8-6-02
- Type: 5-port manifold with G-thread ports
- Thread standards: G1/8 (ISO 228) for main ports
- Material: Lead-free brass CW617N
- Surface treatment: Electrolytic nickel plating (5-8μm)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -5℃ to 90℃
- Seal material: NBR (Nitrile rubber)
- Proof pressure: 1.5 MPa
- Flow rate: 650 NL/min (at 0.5 MPa)
- Weight: 82g ±2%
- Dimensions: 48mm(L) × 32mm(W) × 28mm(H)
- Port configuration: 1 inlet (P), 2 outlets (A/B), 2 exhausts (EA/EB)
- Compliance: RoHS 2.0 compliant
High-density pneumatic distribution block with precision-machined internal channels, featuring corrosion-resistant nickel plating and dual O-ring seals. Designed for compact valve manifolds requiring minimal pressure drop (ΔP ≤0.02MPa @ 0.5MPa). Includes integrated mounting slots for M4 fasteners.
- Modular pneumatic control systems
- Automated assembly line manifolds
- Packaging machine actuator clusters
- PLC-controlled pneumatic circuits
- Laboratory automation test rigs
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten beyond 12Nm torque).
Align flow arrows with system direction. Allow 15mm clearance for wrench access.
