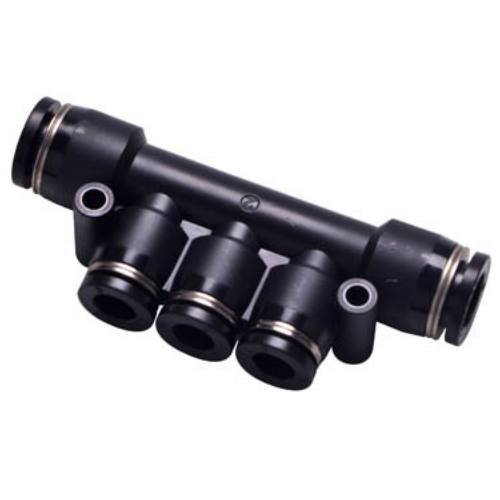

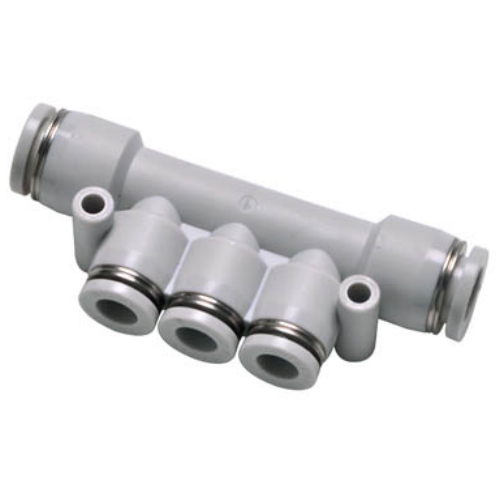

Airtac APKG 5-Port Reducer Adapter APKG6-4
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC APKG6-4 Five-Way Reducing Connector Specifications
- Model: APKG6-4
- Type: 5-port reducing connector (male thread conversion)
- Body material: Nickel-plated brass (anti-corrosion grade C6730)
- Primary port size: G1/8 (ISO228 standard)
- Secondary ports: 4×M5 threaded outlets
- Max working pressure: 1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Thread engagement depth: 8±0.5mm
- Weight: 28±2g
- Dimensions: 32mm(L) × 22mm(W) × 18mm(H)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: 10-2000Hz, 15G acceleration
- Certification: RoHS compliant, ISO6150B fluid compatibility
Compact manifold-style adapter enabling G1/8 to M5 pneumatic line conversion with leak-proof design. Features staggered port configuration for dense piping layouts and 360° rotatable base for flexible orientation. Includes integrated O-ring grooves for positive sealing (pre-lubricated with silicone-free grease).
- Branching air supply lines in multi-axis pneumatic grippers
- Pressure sensor manifold connections
- Miniature valve terminal distribution blocks
- Robotic end-effector pneumatic networks
- Medical device pneumatic control systems
Installation note:
Apply 0.5-0.8 N·m torque during assembly. Use thread sealant only on male threads,
avoiding contamination of sealing surfaces. Test at 0.6 MPa for 3 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | APKG6-4 |
