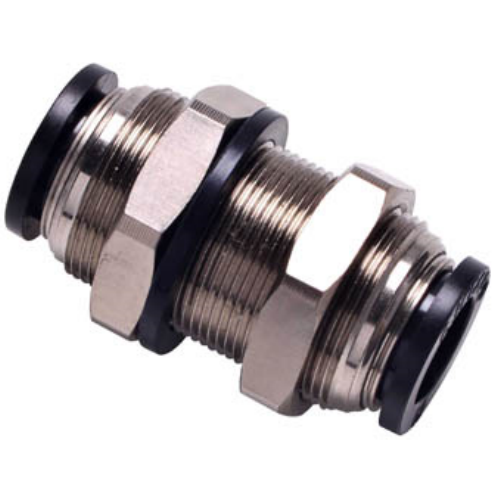

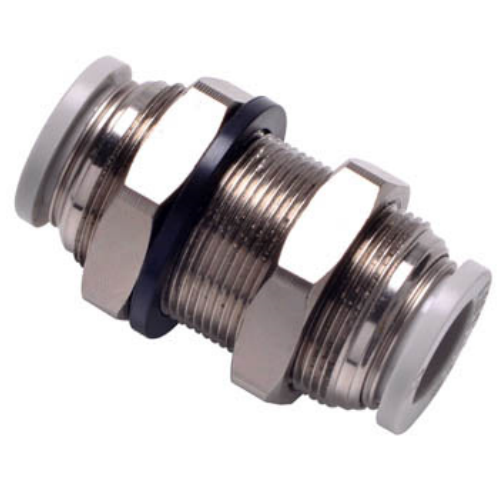

Airtac APM Bulkhead Straight Connector APM10
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM
AirTAC APM10 Bulkhead Straight Thread Connector Technical Details
- Model: APM10 (Bulkhead Type)
- Thread standard: BSPP (G thread)
- Port size: 1/8" (M5x0.8 optional)
- Material: Brass with nickel plating
- Pressure range: 0.05-1.5 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (FKM available for high-temp)
- Weight: 14.5±0.3g
- Dimensions: 30mm(L) × 15mm(W) × 15mm(H)
- Mounting hole diameter: Φ10mm
- Hex size: 14mm wrench flat
- Torque limit: 0.5 N·m max
- Certification: RoHS compliant
Through-panel pneumatic connector designed for secure fluid passage through equipment walls. Features dual O-ring sealing (both sides of panel) and anti-rotation flats for stable installation. The 360° swivel design allows flexible tube orientation adjustments post-installation.
- Pneumatic cabinet pass-through connections
- Modular automation equipment interfaces
- CNC machine tool pneumatic distribution
- Semiconductor manufacturing equipment
- Mobile hydraulic/pneumatic hybrid systems
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten).
Ensure panel thickness between 1-5mm. Use backup wrench during final
torque adjustment to prevent component twisting.
Warning: Not compatible with aggressive chemicals or high-vibration environments without secondary retention. Maximum 500,000 pressure cycles at rated specifications.
| Property | Property Value |
|---|---|
| sku | APM10 |
