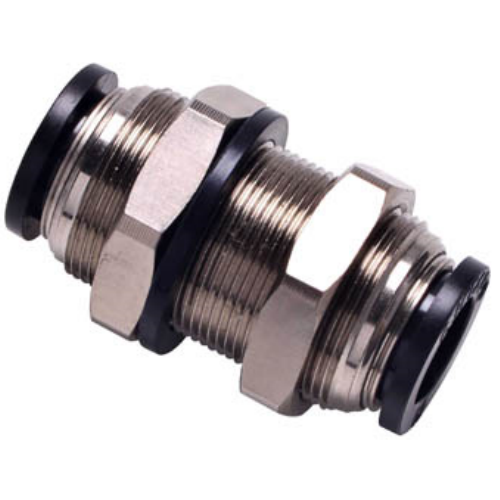

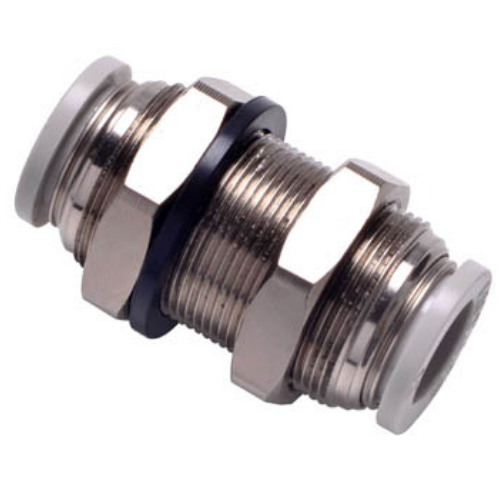

Airtac APM Bulkhead Straight Connector APM16
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM
AirTAC APM16 Bulkhead Straight Through Connector Specifications
- Model: APM16
- Type: Bulkhead-mounted straight thread connector
- Thread Standard: G1/4 (BSPP) / NPT1/4 optional
- Material: Brass (C3604) with nickel plating
- Seal Material: NBR (Nitrile) O-ring
- Max Operating Pressure: 1.5 MPa (217 psi)
- Pressure Range: 0.05-1.5 MPa
- Temperature Range: -5℃ to 80℃
- Flow Rate: 250 L/min (at 0.5 MPa)
- Weight: 118±2g
- Dimensions: 32mm(Length) × 24mm(Width) × 24mm(Height)
- Surface Roughness: Ra ≤1.6μm (sealing surfaces)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
Heavy-duty bulkhead connector designed for panel mounting in pneumatic systems. Features dual O-ring sealing (both sides of panel) and 360° rotatable fitting orientation. Anti-vibration structure prevents loosening under continuous shock, with electroless nickel plating for corrosion resistance in humid environments.
- Pneumatic control cabinet panel installations
- CNC machine tool air supply interfaces
- Food processing equipment with washdown requirements
- Mobile hydraulic/pneumatic hybrid systems
- Laboratory instrument gas distribution
Installation protocol:
Use 1.2-1.5Nm torque during assembly. Apply PTFE tape on male threads only,
ensuring tape doesn't contact O-rings. For aluminum panels, install steel
reinforcing sleeve when thickness is <2mm.
