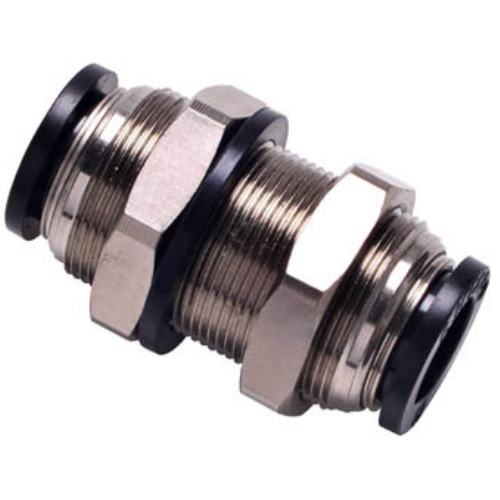

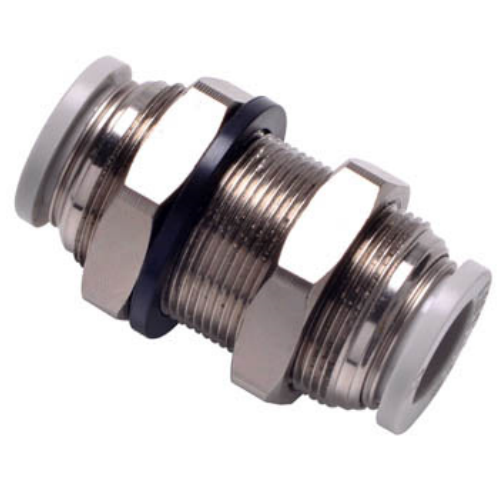

Airtac APM Bulkhead Straight Connector APM6
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APM6
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. This series of connectors is copper-free, making them suitable for direct use in copper-restricted environments.
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM
Installation protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps recommended).
Tighten with 12-15 N·m torque using backup wrench to prevent rotation.
Avoid overtightening - seal compression should not exceed 25%.
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM
AirTAC APM6 Bulkhead Straight Threaded Connector Technical Details
- Model: APM6
- Thread standard: Metric (M5×0.8) / NPT 1/8" optional
- Material: Nickel-plated brass body
- Seal material: NBR (standard) / FKM (fluorine rubber optional)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Port-to-port length: 30±0.5mm
- Hex size: 14mm wrench flat
- Weight: 45g ±2g
- Dimensions: 30mm(L) × 15mm(W) × 15mm(H) (body only)
- Flow coefficient (Cv): 0.25
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
Heavy-duty bulkhead connector featuring dual O-ring seals and anti-vibration thread design. The through-hole structure minimizes pressure drop while maintaining 360° rotatable installation flexibility. Nickel plating provides corrosion resistance in humid environments.
Typical Applications:
- Pneumatic manifold block interconnections
- Compressed air distribution in CNC machinery
- Vacuum system plumbing for automated packaging lines
- Hydraulic sensor mounting in agricultural equipment
- Modular pneumatic circuit assembly
Installation protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps recommended).
Tighten with 12-15 N·m torque using backup wrench to prevent rotation.
Avoid overtightening - seal compression should not exceed 25%.
| Property | Property Value |
|---|---|
| sku | APM6 |
