Airtac APM Bulkhead Straight Connector APM8
$4.36
Regular price
$11.86
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APM8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. This series of connectors is copper-free, making them suitable for direct use in copper-restricted environments.
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM
Installation protocol:
Apply Loctite 5452 thread sealant on male threads before assembly.
Use backup wrench on hex flats during tightening to prevent body rotation.
Torque cycles should not exceed 3 times for optimal seal life.
2. Available in multiple models and specifications, designed for versatile applications across various pneumatic systems.
3. Features superior flow performance with throughput capacity equivalent to the full inner diameter of connected tubing.
4. Incorporates tool-free push-in/pull-out operation for efficient tube connection, ensuring secure, durable connections with pneumatic tubing.
Category: Bulkhead Straight Union Connectors , Brand: AIRTAC , Series: APM

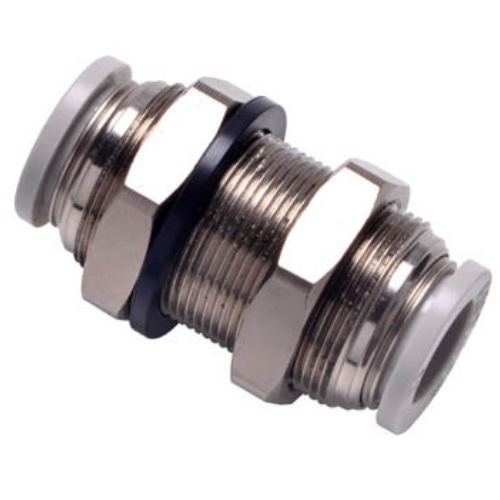

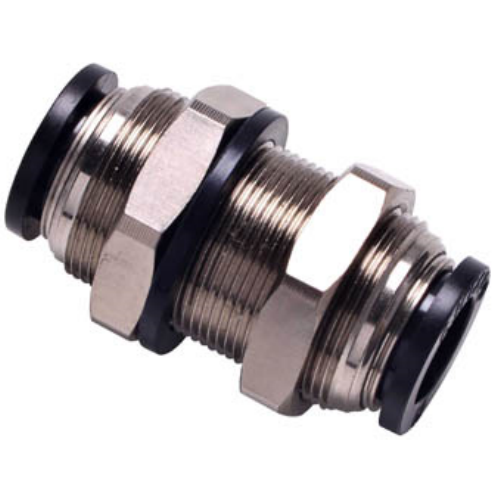

AirTAC APM8 Bulkhead Straight Through Joint Technical Details
- Model: APM8
- Thread standard: Metric (M5×0.8) / NPT optional
- Port configuration: Dual female threads (G1/8)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 80℃
- Flow coefficient (Cv): 0.8
- Body material: Nickel-plated brass (RoHS compliant)
- Seal material: NBR (Nitrile) with PTFE backup ring
- Vibration resistance: 10-2000 Hz (MIL-STD-202G)
- Weight: 28±2g
- Dimensions: 32mm(L) × 18mm(W) × 18mm(H)
- Installation torque: 1.2-1.5 N·m max
- Certifications: ISO 6150-B, JIS B8381
High-density forged brass connector with 360° rotatable joint design for panel-mounted pneumatic systems. Features dual O-ring seals and anti-vibration grooves, optimized for high-cycle applications. Compatible with ISO 15407-1 standard tubing.
Primary Applications:
- Modular pneumatic manifolds in assembly robots
- Vacuum circuit distribution panels
- CNC machine tool coolant line junctions
- Semiconductor fab equipment gas lines
- Hydraulic test bench instrumentation
Installation protocol:
Apply Loctite 5452 thread sealant on male threads before assembly.
Use backup wrench on hex flats during tightening to prevent body rotation.
Torque cycles should not exceed 3 times for optimal seal life.
| Property | Property Value |
|---|---|
| sku | APM8 |
