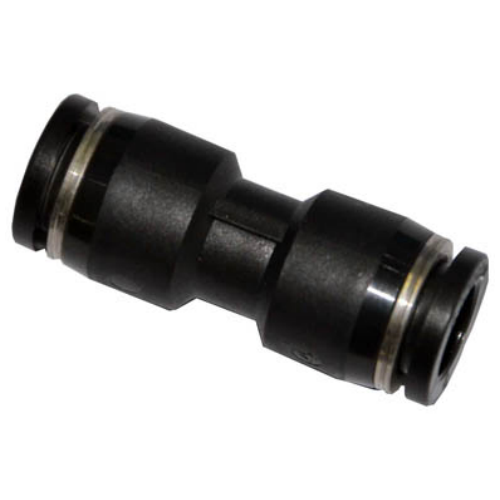

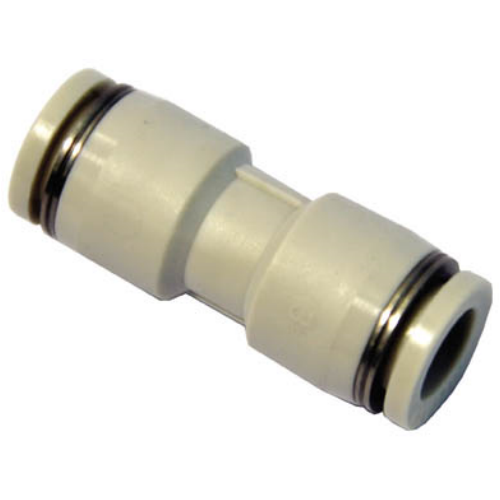

Airtac APU Straight Quick Plug Connector APU10
2、Available in multiple configurations and specifications, widely compatible with various pneumatic systems;
3、Superior flow performance achieves throughput capacity matching the inner diameter of connected tubing;
4、Features quick-connect/disconnect mechanism for efficient tube installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Threaded Type One-way Flow Control Valve , Brand: AirTAC , Series: APU
AirTAC APU10 Straight Through Quick Plug Connector Specifications
- Model: APU10 Series
- Type: Straight-through push-to-connect fitting
- Thread standard: M5×0.8 or 1/8"-27 NPT (selectable)
- Tube compatibility: Ø4mm (5/32") OD pneumatic tubing
- Material: Nickel-plated brass body
- Seal material: NBR/PU hybrid compound
- Operating pressure: 0.05-1.0 MPa (7-145 PSI)
- Temperature range: -5℃ to 60℃
- Flow coefficient (Cv): 0.45
- Leakage rate: ≤3 bubbles/min under 0.5 MPa
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 18g ±0.5g
- Dimensions: 30mm(L) × 10mm(OD) × 4mm(ID)
- IP rating: IP40 (non-submersible)
High-flow push-lock connector featuring 360° rotatable design for flexible piping arrangements. The dual-locking sleeve mechanism ensures secure tube retention while allowing single-hand operation. Precision-machined internal O-ring groove prevents extrusion under pulsating pressure. Compatible with PU, NYLON, and polyethylene tubing.
- Modular pneumatic assembly systems
- Robotic end-effector tooling changes
- Portable medical oxygen delivery units
- Semiconductor wafer handling equipment
- High-cycle packaging machine actuators
Installation protocol:
Cut tubing square (max 0.5° angular tolerance) and deburr before insertion.
Engage locking collar until audible click. Test pull-out resistance (>50N force).
Replace O-rings every 50,000 cycles in high-velocity applications.
| Property | Property Value |
|---|---|
| sku | APU10 |
