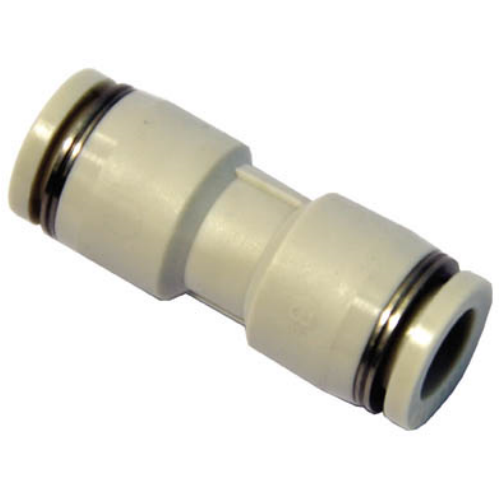

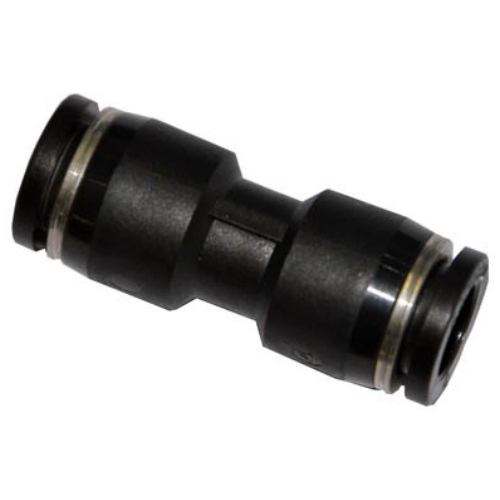

Airtac APU Straight Quick Plug Connector APU16
2、Available in multiple configurations and specifications, widely compatible with various pneumatic systems;
3、Superior flow performance achieves throughput capacity matching the inner diameter of connected tubing;
4、Features quick-connect/disconnect mechanism for efficient tube installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Threaded Type One-way Flow Control Valve , Brand: AirTAC , Series: APU
AirTAC APU16 Straight Through Quick Coupling Specifications
- Model: APU16
- Type: Straight-through push-to-connect fitting
- Thread standard: G1/8 (BSPP) / M5×0.8 optional
- Material: Nickel-plated brass body
- Seal material: HNBR (Hydrogenated Nitrile)
- Operating pressure: 0.2-1.0 MPa (29-145 psi)
- Burst pressure: ≥3.0 MPa (435 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow rate: 300 NL/min (at 0.5 MPa)
- Tube compatibility: Φ4mm (5/32") OD polyurethane/nylon tubing
- Weight: 28g ±1g
- Dimensions: 35mm(L) × 16mm(W) × 16mm(H)
- IP rating: IP40 (dust protected)
- Certification: RoHS compliant
- Color: Metallic silver with blue release sleeve
High-flow quick-disconnect coupling featuring zero-leak push-in technology and 360° rotatable connection. The dual-locking sleeve design prevents accidental disconnection while allowing single-hand operation. Precision-machined internal O-ring groove ensures stable sealing under pressure fluctuations.
- Pneumatic tool air supply lines
- Automated assembly line manifolds
- Packaging machine air circuits
- Medical device pneumatic systems
- Semiconductor manufacturing equipment
- Robotic end-effector connections
Installation note:
Cut tubing ends square and deburr before insertion. For optimal performance,
insert tubing until it bottoms out (audible click). Regular lubrication of
O-rings with silicone grease (every 5,000 cycles) extends service life.
| Property | Property Value |
|---|---|
| sku | APU16 |
