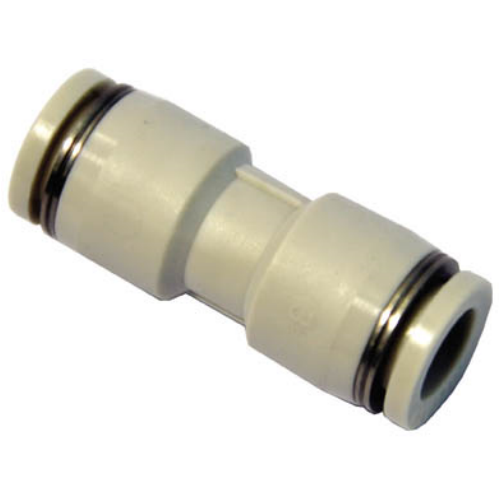

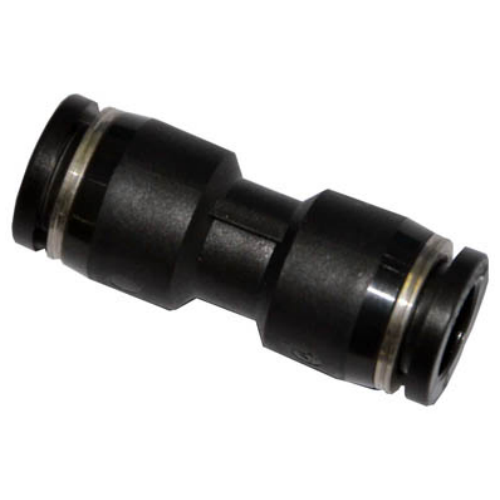

Airtac APU Straight Quick Plug Connector APU8
$2.80
Regular price
$10.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APU8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、This product series is entirely copper-free, making it suitable for direct application in copper-restricted environments;
2、Available in multiple configurations and specifications, widely compatible with various pneumatic systems;
3、Superior flow performance achieves throughput capacity matching the inner diameter of connected tubing;
4、Features quick-connect/disconnect mechanism for efficient tube installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Threaded Type One-way Flow Control Valve , Brand: AirTAC , Series: APU
Installation protocol:
Insert tube until audible click (minimum insertion depth 15mm).
Always perform pull-out test with 5kg force after installation.
Replace seals every 50,000 cycles in high-usage environments.
2、Available in multiple configurations and specifications, widely compatible with various pneumatic systems;
3、Superior flow performance achieves throughput capacity matching the inner diameter of connected tubing;
4、Features quick-connect/disconnect mechanism for efficient tube installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Threaded Type One-way Flow Control Valve , Brand: AirTAC , Series: APU
AirTAC APU8 Straight Through Quick Connector Technical Details
- Model: APU8 Series
- Type: Push-to-connect straight thread connector
- Port size: PT1/8 (G1/8 optional)
- Material: Brass with nickel plating
- Seal material: NBR/PU hybrid compound
- Operating pressure: 0.05–1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -5℃ to 60℃
- Flow rate: 350 NL/min (at 0.5 MPa)
- Installation: In-line configuration
- Mounting options: Single/double ear clamp compatible
- Weight: 25g ±2g
- Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
- Tube compatibility: Ø4mm (5/32") or Ø6mm (1/4") PU/Nylon
- Vibration resistance: ≤10Hz @ 2mm amplitude
- Certification: ISO 6150-1 compliant
High-flow quick-disconnect fitting featuring zero-leak push-lock mechanism with 360° rotatable collar. The APU8's dual O-ring design ensures pressure-tight sealing even under pulsation conditions. Optimized for compressed air systems requiring rapid assembly/disassembly without tools.
Primary Applications:
- Modular pneumatic assembly lines
- Robotic arm end-effector connections
- Portable air compressor hose interfaces
- CNC machine tool coolant line junctions
- Medical gas delivery systems (oxygen/nitrogen)
- Semiconductor cleanroom equipment
Installation protocol:
Insert tube until audible click (minimum insertion depth 15mm).
Always perform pull-out test with 5kg force after installation.
Replace seals every 50,000 cycles in high-usage environments.
