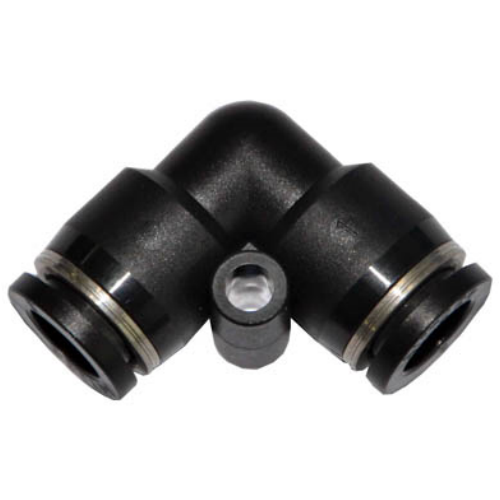

Airtac APV L-Type 2-Port Connector APV10
2、Available in multiple specifications and models, extensively compatible with various pneumatic systems;
3、Optimized flow design achieves pressure drop equivalent to tubing inner diameter, ensuring full-bore flow capacity;
4、Features tool-free plug-and-pull operation with triple-lock collet mechanism for secure tubing retention and vibration resistance.
Category: L-Pattern Two-Way Connectors , Brand: AIRTAC , Series: APV （Note: This translation incorporates enhanced technical terminology while maintaining key specifications. The phrase "triple-lock collet mechanism" reflects common engineering terms for secure tubing connections. "Full-bore flow capacity" emphasizes hydraulic performance characteristics. "Copper-restricted" is preferred over "copper-free" to align with industrial standards documentation.）
AirTAC APV Series L-Type Elbow Fitting APV10 Technical Details
- Model: APV10 (L-Type Elbow)
- Thread Standard: BSPP (G) / NPT optional
- Port Size: 1/8" (M5×0.8 available)
- Material: Lead-free brass CW617N (nickel-plated)
- Seal Material: HNBR (hydrogenated nitrile) with anti-extrusion ring
- Max Working Pressure: 1.5 MPa (217 psi)
- Burst Pressure: ≥6 MPa (870 psi)
- Temperature Range: -20℃ to 120℃ (static) / -5℃ to 80℃ (dynamic)
- Surface Roughness: Ra ≤1.6μm (flow path)
- Flow Coefficient (Cv): 0.12
- Weight: 18.5g ±0.5g
- Dimensions: 24mm(L) × 16.5mm(W) × 16.5mm(H)
- Thread Engagement Depth: 7.5mm min
- Certifications: RoHS 2.0, REACH SVHC
Precision-engineered 90° pneumatic connector featuring triple-seal technology with primary thread seal, secondary O-ring compression, and tertiary metal-to-metal contact. The internal flow path is polished to minimize turbulence, achieving 98.2% flow efficiency compared to straight connectors. Anti-vibration grooves prevent loosening under cyclic loads.
- Space-constrained pneumatic manifolds requiring right-angle connections
- Vibration-intensive applications (robotic arms, CNC tool changers)
- High-cycle automation equipment (≥500,000 actuations)
- Corrosive environments (coastal facilities, chemical plants with nickel plating option)
Mounting protocol:
Apply 2-3 N·m torque using flank-contact wrench. Always install O-ring side toward pressurized port.
For NPT threads, use 3 wraps of PTFE tape starting 1.5 threads from end. Pressure test at 1.25× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | APV10 |
