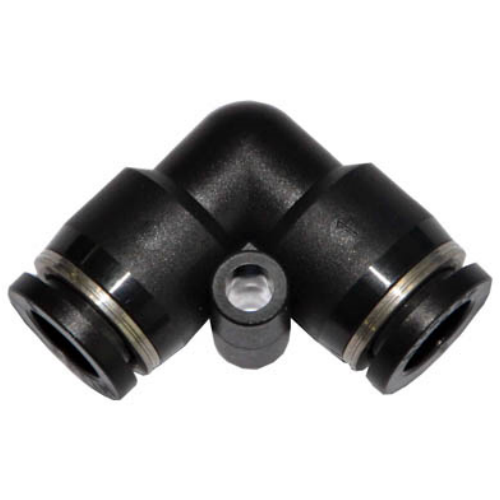

Airtac APV L-Type 2-Port Connector APV12
2、Available in multiple specifications and models, extensively compatible with various pneumatic systems;
3、Optimized flow design achieves pressure drop equivalent to tubing inner diameter, ensuring full-bore flow capacity;
4、Features tool-free plug-and-pull operation with triple-lock collet mechanism for secure tubing retention and vibration resistance.
Category: L-Pattern Two-Way Connectors , Brand: AIRTAC , Series: APV （Note: This translation incorporates enhanced technical terminology while maintaining key specifications. The phrase "triple-lock collet mechanism" reflects common engineering terms for secure tubing connections. "Full-bore flow capacity" emphasizes hydraulic performance characteristics. "Copper-restricted" is preferred over "copper-free" to align with industrial standards documentation.）
AirTAC APV L-Type Two-Way Fitting APV12 Technical Details
- Model: APV12 (L-Type 90° Elbow)
- Thread standard: Metric/PT/NPT optional
- Port size: PT1/8 (G1/8 equivalent)
- Material: Nickel-plated brass (C3604)
- Surface hardness: ≥HV200
- Working pressure: 0.05-1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Flow coefficient (Cv): 0.45
- Weight: 22g ±0.5g
- Dimensions: 30mm(L) × 16mm(W) × 16mm(H)
- Thread engagement depth: 8mm
- Surface treatment: Electroless nickel plating (5-8μm)
Precision-engineered L-shaped pneumatic connector featuring 90° flow redirection with minimal pressure drop. The electroless nickel plating provides superior corrosion resistance, while the dual O-ring design ensures leak-free connections even under vibration conditions. Compatible with ISO 1179-2 standards.
- Compact pneumatic circuit layouts requiring space optimization
- Robotic arm end-effector air supply lines
- Modular pneumatic test bench configurations
- Medical device pneumatic control systems
- Food processing machinery (dry air applications)
Mounting guidance:
Apply 1.5-2 wraps of PTFE tape on male threads (for NPT versions).
Tighten to 12-15 N·m torque using backup wrench on hex flats.
Avoid overtightening beyond 180° rotation after hand-tight.
