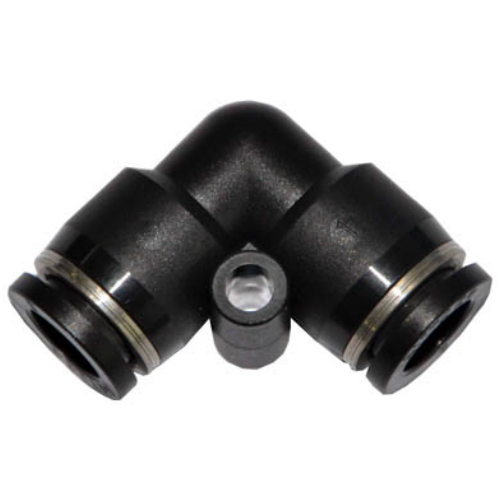

Airtac APV L-Type 2-Port Connector APV16
$6.94
Regular price
$14.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APV16
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、This series of connectors is entirely copper-free, making it directly applicable in copper-restricted environments;
2、Available in multiple specifications and models, extensively compatible with various pneumatic systems;
3、Optimized flow design achieves pressure drop equivalent to tubing inner diameter, ensuring full-bore flow capacity;
4、Features tool-free plug-and-pull operation with triple-lock collet mechanism for secure tubing retention and vibration resistance.
Category: L-Pattern Two-Way Connectors , Brand: AIRTAC , Series: APV （Note: This translation incorporates enhanced technical terminology while maintaining key specifications. The phrase "triple-lock collet mechanism" reflects common engineering terms for secure tubing connections. "Full-bore flow capacity" emphasizes hydraulic performance characteristics. "Copper-restricted" is preferred over "copper-free" to align with industrial standards documentation.）
Installation protocol:
Apply PTFE tape clockwise (2.5 wraps minimum) on male threads.
Torque specification: 12-15 N·m. Avoid overtightening which may
compress O-ring beyond 25% deformation limit. Post-installation
pressure test required.
2、Available in multiple specifications and models, extensively compatible with various pneumatic systems;
3、Optimized flow design achieves pressure drop equivalent to tubing inner diameter, ensuring full-bore flow capacity;
4、Features tool-free plug-and-pull operation with triple-lock collet mechanism for secure tubing retention and vibration resistance.
Category: L-Pattern Two-Way Connectors , Brand: AIRTAC , Series: APV （Note: This translation incorporates enhanced technical terminology while maintaining key specifications. The phrase "triple-lock collet mechanism" reflects common engineering terms for secure tubing connections. "Full-bore flow capacity" emphasizes hydraulic performance characteristics. "Copper-restricted" is preferred over "copper-free" to align with industrial standards documentation.）
AirTAC APV L-Type Straight Thread Elbow Fitting APV16 Technical Details
- Model Series: APV-L (L-type metric thread)
- Thread Specification: M16×1.5 (external thread both ends)
- Material: Lead-free brass CW617N (nickel-plated surface)
- Seal Type: Precision-molded NBR O-ring
- Pressure Range: 0.05-1.0 MPa (7-145 psi)
- Temperature Range: -5℃ to 60℃ (23℉ to 140℉)
- Flow Capacity: 250 NL/min (at 0.5 MPa)
- Weight: 15.8g ±0.5g
- Dimensions: 30mm(L) × 16mm(W) × 16mm(H)
- Surface Roughness: Ra ≤1.6μm (sealing areas)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Certifications: RoHS compliant, REACH SVHC-free
90° elbow pneumatic connector with precision-machined metric threads and self-aligning port design. Features anti-vibration thread locking structure and chemical-resistant plating, optimized for high-cycle pneumatic systems. Compatible with ISO 1179-1 standard fittings.
Primary Applications:
- Pneumatic cylinder port connections
- Modular pneumatic manifolds integration
- CNC machine tool air circuit distribution
- Semiconductor handling equipment
- Beverage dispensing systems
- Laboratory pneumatic instrumentation
Installation protocol:
Apply PTFE tape clockwise (2.5 wraps minimum) on male threads.
Torque specification: 12-15 N·m. Avoid overtightening which may
compress O-ring beyond 25% deformation limit. Post-installation
pressure test required.
Service life:
500,000 cycles under standard conditions (0.5 MPa, 23℃).
Replace O-rings immediately if hardness exceeds 80 Shore A
or compression set surpasses 15%.
