Airtac APX Y-Type Tee Fitting APX12-03
$5.39
Regular price
$12.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APX12-03
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Copper-free construction ensures direct applicability in copper-restricted environments;
2. Comprehensive model range with multiple specifications, engineered for versatile integration across pneumatic systems;
3. Optimized flow dynamics achieve full-bore performance matching tubing inner diameter capacity;
4. Tool-free push-to-connect mechanism enables rapid installation/removal, with robust tubing retention for secure long-term operation.
Category: Y-Type Tee Fittings | Brand: AirTAC | Series: APX
Installation guidelines:
Apply thread sealant only on male threads (PT type). Avoid overtightening -
use torque wrench for M5 ports. Align flow arrow with primary supply line.
Recommended maintenance: Inspect seals every 2,000 operating hours.
2. Comprehensive model range with multiple specifications, engineered for versatile integration across pneumatic systems;
3. Optimized flow dynamics achieve full-bore performance matching tubing inner diameter capacity;
4. Tool-free push-to-connect mechanism enables rapid installation/removal, with robust tubing retention for secure long-term operation.
Category: Y-Type Tee Fittings | Brand: AirTAC | Series: APX

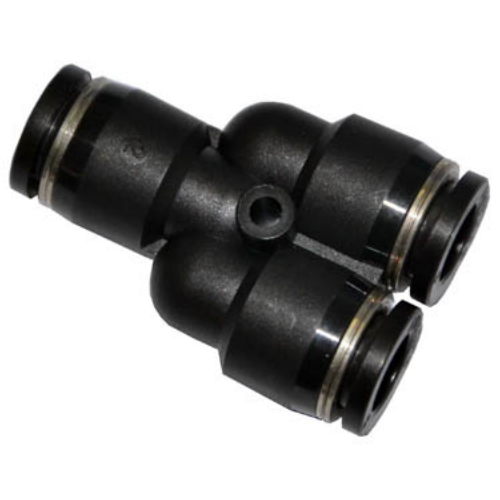

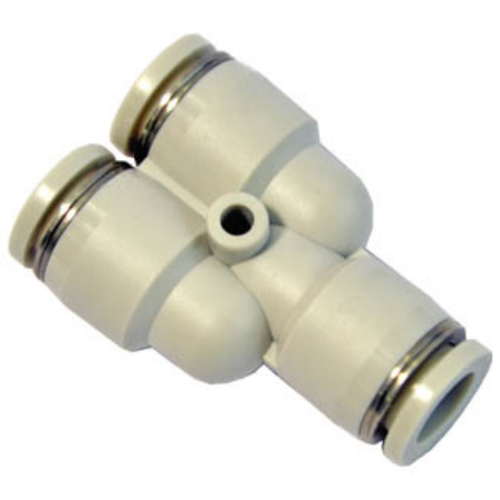

AirTAC APX Y-Type Tee Connector APX12-03 Technical Details
- Model: APX12-03
- Type: Y-shaped pneumatic tee connector (equal distribution)
- Thread standard: Metric (M5) & BSPP (G1/8) compatible
- Material: Nickel-plated brass (stainless steel optional)
- Max working pressure: 1.0 MPa
- Temperature range: -20℃ to 80℃
- Seal material: HNBR (high-grade oil-resistant rubber)
- Flow capacity: 450 NL/min @ 0.5 MPa
- Surface treatment: Electroless nickel plating (3-5μm)
- Weight: 18g ±0.5g
- Dimensions: 32mm(L) × 28mm(W) × 28mm(H)
- Installation torque: 1.2-1.5 N·m
- Compliance: ISO 6150-B standard
- IP rating: IP40 (dust protected)
Precision-engineered Y-branch connector featuring low-pressure loss design with mirror-polished internal channels. The 60° angled ports optimize airflow distribution while maintaining compact footprint. Corrosion-resistant construction ensures durability in humid environments.
Common Applications:
- Pneumatic circuit branching in robotic arms
- Modular air distribution blocks for assembly lines
- Medical gas line splitting devices
- Compressed air networks in CNC machinery
- Laboratory pneumatic control systems
Installation guidelines:
Apply thread sealant only on male threads (PT type). Avoid overtightening -
use torque wrench for M5 ports. Align flow arrow with primary supply line.
Recommended maintenance: Inspect seals every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | APX12-03 |
