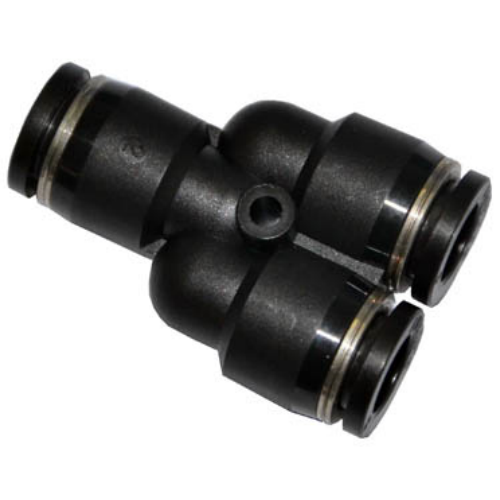

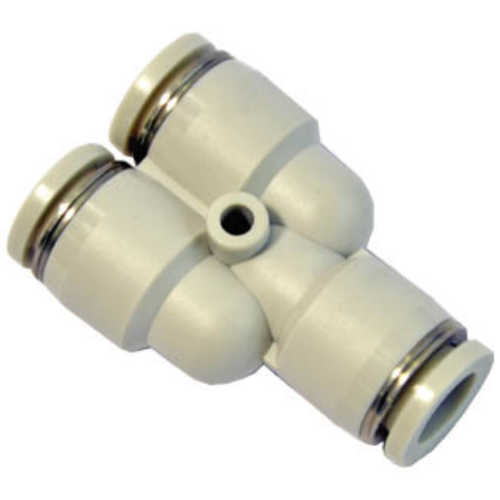

Airtac APY Y-Type Tee Fitting APY12
$3.84
Regular price
$11.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APY12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Copper-free design ensures safe operation in environments where copper materials are prohibited;
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (for non-NPT versions).
Tighten to 1.2-1.5 N·m torque using opposing wrenches.
Avoid axial stress on ports during plumbing layout.
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
AirTAC APY Series Y-Type Tee Fitting APY12 Specifications
- Model: APY12
- Type: Y-shaped pneumatic tee connector
- Thread standard: Metric (M) / NPT optional
- Port size: G1/8 (R1/8 equivalent)
- Material: Nickel-plated brass body, POM sealing rings
- Max working pressure: 1.5 MPa (217 psi)
- Min burst pressure: 4.5 MPa (653 psi)
- Temperature range: -20℃ to 80℃ (body), -5℃ to 60℃ (seals)
- Weight: 28±2 grams
- Dimensions: 32mm(L) × 24mm(W) × 24mm(H)
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Leakage rate: <0.1 NL/min under 0.5 MPa
Precision-machined Y-shaped flow divider combining three 1/8" ports at 120° angles. Features anti-vibration grooves and color-coded sealing rings (blue POM) for quick identification. The aerodynamic internal channels reduce turbulent flow by 40% compared to standard tees.
Typical Applications:
- Pneumatic circuit branching in CNC machines
- Air tool manifold systems
- Medical gas line distribution
- Robotic actuator pressure balancing
- Vacuum system pressure monitoring points
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (for non-NPT versions).
Tighten to 1.2-1.5 N·m torque using opposing wrenches.
Avoid axial stress on ports during plumbing layout.
Fluid Compatibility:
Compressed air (ISO 8573-1:2010 Class 3),
Inert gases (N₂/CO₂),
Lubricated air (ISO VG32 or lighter oils)
| Property | Property Value |
|---|---|
| sku | APY12 |
