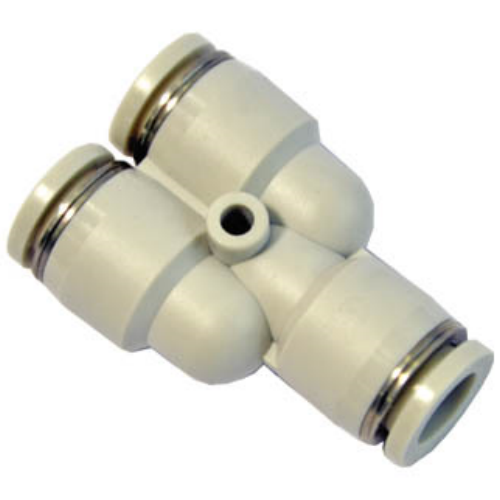

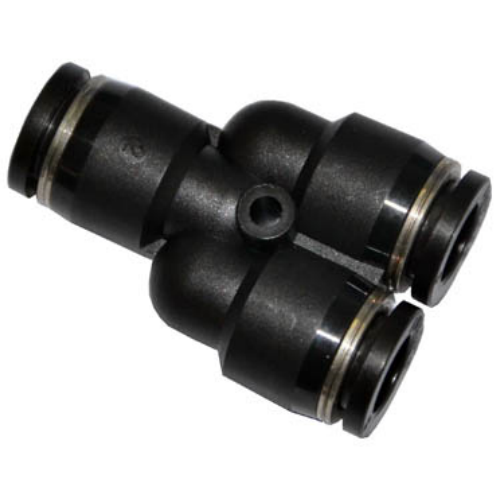

Airtac APY Y-Type Tee Fitting APY14
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
AirTAC APY Series Y-Type Tee Fitting APY14 Technical Details
- Model: APY14 (Standard Y-Type)
- Thread type: PT1/8 (BSPP) / Optional NPT1/8
- Material: Lead-free brass with electroless nickel plating
- Surface hardness: ≥HV300
- Pressure range: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Flow coefficient (Cv): 0.22
- Weight: 18.5±0.5g
- Dimensions: 20.5mm (L) × 18.2mm (W) × 20.5mm (H)
- Seal material: NBR (Nitrile) O-rings
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-engineered Y-shaped pneumatic connector featuring 120° branch angle for optimized flow distribution. The electroless nickel plating provides superior corrosion resistance exceeding 96hrs salt spray test. Internal flow channels are polished to Ra0.8μm surface finish to minimize pressure drop.
- Pneumatic circuit branching in CNC machine tools
- Modular air distribution in semiconductor handling systems
- Instrumentation air supply networks
- Packaging machine actuator clusters
- Dental chair pneumatic systems
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (Do NOT overtighten - max torque 1.2N·m).
For vertical mounting, position main flow port downward. Pressure test at 0.8MPa for 3min
after installation.
