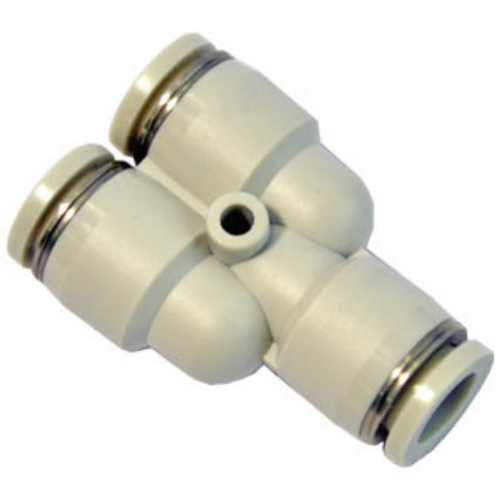

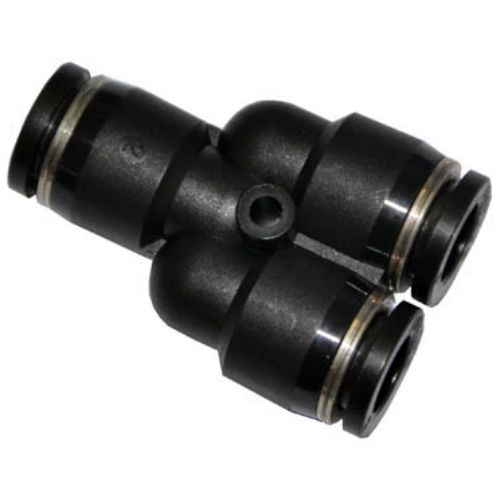

Airtac APY Y-Type Tee Fitting APY16
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
AirTAC APY Series Y-Type Tee Fitting APY16 Technical Details
- Model: APY16
- Type: Y-shaped triple union (equal-diameter branching)
- Thread standard: Metric (M) / BSPP optional
- Port size: G1/8 (R1/8 available on request)
- Material: Lead-free brass CW617N (electroless nickel plating)
- Max working pressure: 1.0 MPa (145 psi)
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -20℃ to 120℃ (NBR seals)
- Weight: 24g ±0.5g
- Dimensions: 32mm(L) × 22mm(W) × 22mm(H)
- Surface roughness: Ra ≤3.2μm (internal flow path)
- Torque specification: 12-15 N·m (installation)
Precision-engineered Y-connector featuring triple-ported flow distribution with minimal pressure drop. The 60° branch angle optimizes fluid dynamics in compact layouts. Nickel-plated construction resists oxidation and particulate shedding. Compatible with air, water, and non-corrosive gases.
- Pneumatic circuit splitting for multi-actuator systems
- Coolant line distribution in CNC machines
- Vacuum system node connections
- Instrumentation air supply networks
- Robotic end-effector pneumatic routing
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (Type B installations).
Avoid overtightening - use torque wrench for critical applications.
Flow arrow indicates primary direction; reverse installation permitted for bidirectional systems.
| Property | Property Value |
|---|---|
| sku | APY16 |
