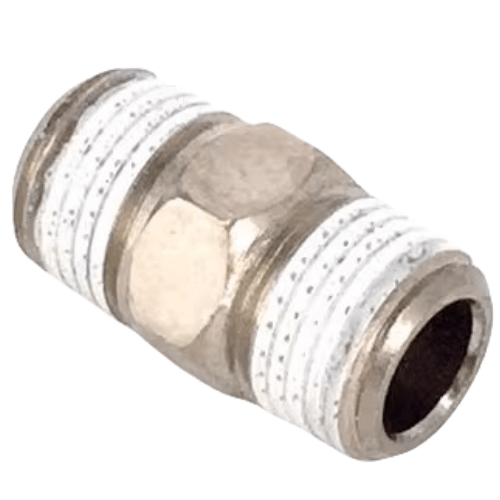

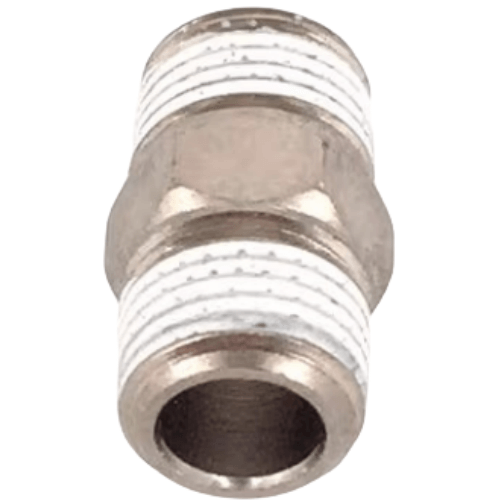

Airtac BB Double Male Thread Straight Connector BB0304
AirTAC BB Series Double Male Thread Straight Connector BB0304 Specifications
- Model: BB0304
- Type: Double male thread straight union (90° elbow design)
- Thread standard: Metric/PT/NPT optional
- Thread size: M5×0.8 / PT1/8 / NPT1/8
- Material: Nickel-plated brass (base), NBR sealing rings
- Pressure range: 0.05–1.5 MPa
- Burst pressure: ≥6 MPa
- Temperature range: -20℃ to 80℃
- Flow coefficient (Cv): 0.3
- Weight: 12g ±0.5g
- Dimensions: 20mm(L) × 10mm(W) × 10mm(H)
- Surface roughness: Ra ≤1.6μm
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Precision-machined dual male thread connector featuring corrosion-resistant nickel plating and anti-vibration grooves. The 90° elbow design enables compact plumbing in tight spaces while maintaining laminar airflow. Includes dual NBR O-rings for leak-proof sealing under pulsating pressure conditions.
- Pneumatic cylinder port conversion
- Modular assembly in automation equipment
- Air preparation unit piping networks
- Medical gas line connections (oil-free models)
- Robotic end-effector tooling interfaces
Installation protocol:
Apply 2-3 drops of pneumatic sealant (non-hardening type) on threads before assembly.
Tighten with 0.8–1.2 N·m torque using backup wrench to prevent component rotation.
Max 30° offset tolerance from vertical/horizontal axis permitted.
