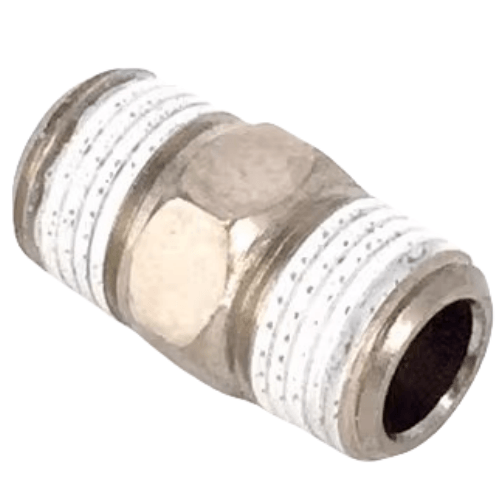

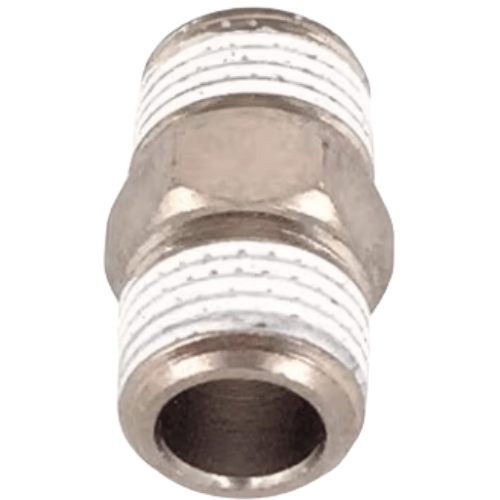

Airtac BB Double Male Thread Straight Connector BB0304-S
AirTAC BB0304-S Double Male Thread Straight Connector Specifications
- Model: BB0304-S
- Type: Double male thread straight union
- Thread specification: M5×0.8 male at both ends
- Material: Stainless steel (SUS303) body, NBR seals
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Temperature range:
- Operation: -20℃ to 80℃ (NBR seals)
- Storage: -30℃ to 100℃
- Weight: 4.2 grams ±0.3g
- Dimensions:
- Total length: 19.5mm
- Thread length: 7mm per side
- Hex size: 8mm AF
- Outer diameter: 10mm (flange section)
- Surface treatment: Passivation anti-corrosion
- Flow coefficient (Cv): 0.07
- Vibration resistance: 10-2000Hz, 20m/s² max
Precision-machined connector featuring dual male threads with 60° cone seat design for leak-free connections. The hexagonal center allows standard wrench tightening (recommended torque ≤1.2N·m). Internal flow path optimized for minimal pressure drop (ΔP <0.01MPa @1MPa). Compatible with air, water, and non-corrosive gases.
- Pneumatic cylinder port extensions
- Sensor mounting adapters in automation lines
- Coolant line connections for CNC machines
- Vacuum system component interfacing
- Medical gas equipment plumbing
Installation note:
Apply thread sealant (PTFE tape or liquid seal) on male threads before assembly.
Avoid overtightening - use torque wrench for critical applications.
Not recommended for continuous rotation systems.
