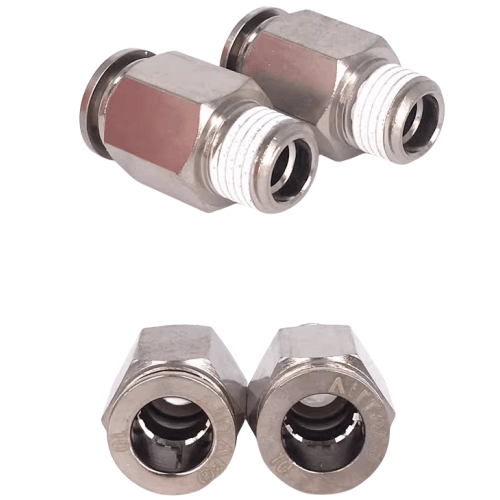

Airtac BPC Metal Straight Connector BPC402
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
AirTAC BPC402 Brass Straight Threaded Connector Technical Details
- Model: BPC402 (Metal Series)
- Thread Standard: BSPP (G thread)
- Port Size: PT1/4 (Equivalent to G1/4)
- Material: Lead-free brass with nickel plating
- Seal Material: NBR (Nitrile) O-ring
- Max Working Pressure: 1.5 MPa (217 PSI)
- Temperature Range: -20℃ to 120℃
- Tube Compatibility: 8mm OD pneumatic tubing
- Surface Treatment: Electrolytic polishing
- Weight: 45g ±2g
- Dimensions: 28mm(L) × 16mm(Diameter) × 16mm(Hex Size)
- Vibration Resistance: ≤20 m/s²
- Certification: RoHS compliant
Heavy-duty straight connector featuring military-grade thread engagement with dual sealing surfaces. The precision-machined tapered threads ensure leak-free connections even under pulsating pressure conditions. Nickel plating provides enhanced corrosion resistance against hydraulic fluids and industrial coolants.
- High-pressure pneumatic tool connections
- CNC machine air/oil mixing systems
- Compressed air distribution manifolds
- Hydraulic test bench plumbing
- Robotic end effector pneumatic circuits
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Tighten to 12-15 N·m torque using backup wrench on hex flats.
Avoid overtightening which may deform sealing surfaces.
| Property | Property Value |
|---|---|
| sku | BPC402 |
| Port Size | <4mm> |
| Connection Thread | PT1/4 |
