Airtac BPC Metal Straight Connector BPC4M5
$3.94
Regular price
$11.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPC4M5
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout

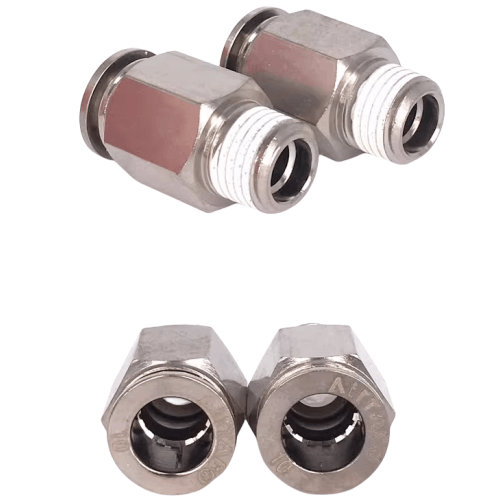

Description
1. Constructed with all-metal threaded design, internal components contain brass; multiple models and specifications available, widely compatible with various pneumatic systems;
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
Installation protocol:
Cut tube ends square, deburr thoroughly, and insert until audible "click".
For leak-proof performance, perform 2-3 test insertions with new tubes
to polish sealing surfaces. Maximum angular misalignment: 3°.
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
AirTAC BPC4M5 Metal Straight Through Joint Technical Details
- Model: BPC4M5
- Type: Reusable metal straight connector
- Material: Brass with nickel plating
- Thread standard: Metric (M5×0.8 thread pitch)
- Tube compatibility: 4mm OD pneumatic tubing
- Pressure rating: 0-1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 9.5g ±0.3g
- Dimensions: 25mm(L) × 8mm(Dia) body, 14mm hex width
- Surface hardness: ≥HV200
- Seal type: Integrated O-ring (NBR material)
- Torque specification: 0.8-1.2 N·m installation torque
- Vibration resistance: 10-2000Hz, 1.5mm amplitude
Precision-engineered metal push-to-connect fitting featuring dual sealing structure with metal-to-metal primary seal and secondary elastomer seal. The knurled surface design enhances grip during installation/removal. Rated for 50,000+ connection cycles with proper maintenance.
Ideal Applications:
- High-vibration pneumatic systems (robotic arms, CNC machines)
- Compressed air lines in humid environments
- Vacuum system connections requiring metal compatibility
- High-cycle automation equipment with frequent tube changes
- Chemical-resistant applications (non-corrosive media)
Installation protocol:
Cut tube ends square, deburr thoroughly, and insert until audible "click".
For leak-proof performance, perform 2-3 test insertions with new tubes
to polish sealing surfaces. Maximum angular misalignment: 3°.
Maintenance:
Clean with alcohol wipes quarterly. Replace if hex flats show
visible rounding. Lubricate O-rings with silicone grease (Parker
Super O-Lube recommended) every 5,000 cycles.
| Property | Property Value |
|---|---|
| sku | BPC4M5 |
| Port Size | <4mm> |
| Connection Thread | M5×0.8 |
