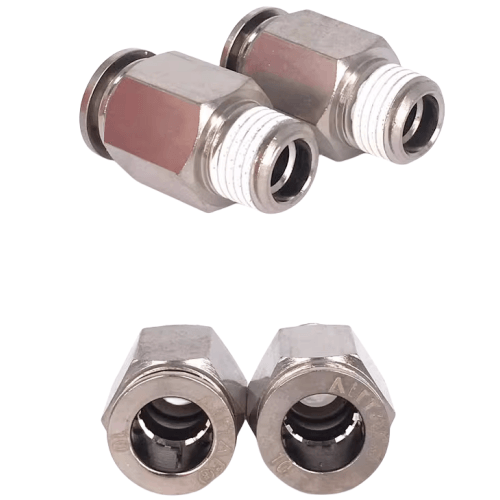

Airtac BPC Metal Straight Connector BPC601
$4.25
Regular price
$11.75
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPC601
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Constructed with all-metal threaded design, internal components contain brass; multiple models and specifications available, widely compatible with various pneumatic systems;
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
Installation protocol:
Use proper thread sealant (LOCTITE 577 recommended for NPT threads).
Tighten with torque wrench: M5=1.5-2.0N·m, M16=14-16N·m.
Always perform pressure decay test (0.5MPa for 5min) after installation.
Avoid using pipe wrenches - employ proper flare nut spanners.
Do not exceed maximum angular misalignment of 3° between connected components.
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
AirTAC BPC601 Metal Straight Threaded Connector Technical Details
- Model: BPC601 Series
- Type: Metric straight thread connector (male to female)
- Body material: Nickel-plated brass (Stainless steel SS304 optional)
- Thread standard: PT/NPT/G (specify when ordering)
- Thread size range: M5×0.8 to M16×1.5
- Pressure rating: 0.5-3.0 MPa (7-435 PSI)
- Burst pressure: ≥12 MPa
- Temperature range: -20℃ to 150℃ (NBR seals) / -20℃ to 200℃ (FKM seals)
- Seal material options: Standard NBR, Optional FKM/Viton
- Surface treatment: Electrolytic polishing + chromate plating
- Weight: 18-72g (varies by size: M5=18g, M16=72g)
- Dimensions (L×W×H):
- M5 size: 22mm(L) × 10mm(OD) × 10mm(ID)
- M16 size: 38mm(L) × 24mm(OD) × 16mm(ID)
- Vibration resistance: 10-2000Hz, 15g acceleration
Heavy-duty reusable connector with triple-sealing structure (thread+O-ring+metal-to-metal contact). Features anti-vibration grooves and corrosion-resistant plating, designed for high-pressure pneumatic/hydraulic systems. Compatible with ISO 8434-1/DIN 2353 standards.
Common Applications:
- Industrial robot pneumatic gripper connections
- CNC machine tool coolant line junctions
- Hydraulic power unit piping systems
- Semiconductor manufacturing gas supply lines
- Railway braking system interfaces
Installation protocol:
Use proper thread sealant (LOCTITE 577 recommended for NPT threads).
Tighten with torque wrench: M5=1.5-2.0N·m, M16=14-16N·m.
Always perform pressure decay test (0.5MPa for 5min) after installation.
Avoid using pipe wrenches - employ proper flare nut spanners.
Do not exceed maximum angular misalignment of 3° between connected components.
| Property | Property Value |
|---|---|
| sku | BPC601 |
| Port Size | <6mm> |
| Connection Thread | PT1/8 |
