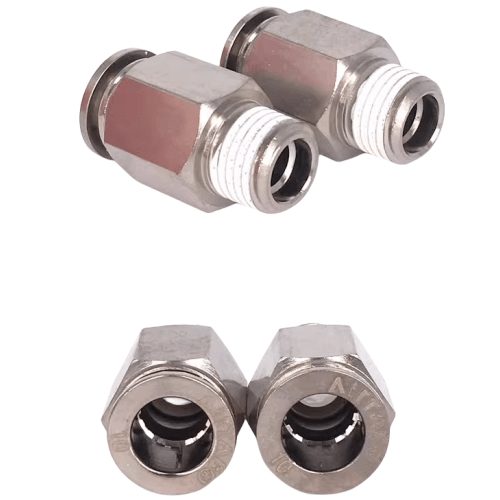

Airtac BPC Metal Straight Connector BPC6M5
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
AirTAC BPC6M5 Metal Straight Threaded Connector Specifications
- Model: BPC6M5 (BPC Series)
- Type: Male Thread to Male Thread Straight Connector
- Thread Standard: Metric Fine (M5×0.8)
- Material: Stainless Steel 303/304 (Body), NBR/Nitrile Seals
- Max Working Pressure: 30 MPa (4350 PSI)
- Burst Pressure: ≥90 MPa
- Temperature Range: -20℃ to 100℃ (-4°F to 212°F)
- Surface Treatment: Electroless Nickel Plating (5-8μm)
- Fluid Compatibility: Air, Water, Hydraulic Oil (ISO VG32-68)
- Tightening Torque: 1.2-1.5 N·m
- Weight: 5.2±0.3g
- Dimensions: 15mm(L) × 6mm(OD) × 6mm(ID)
- Vibration Resistance: 10-2000Hz, 30m/s²
- Certification: RoHS Compliant
Precision-machined stainless steel fitting with triple-sealing structure (metal-to-metal primary seal + dual O-ring backup). Features anti-vibration grooves and corrosion-resistant plating for harsh environments. The 360° rotatable design enables flexible piping alignment without seal degradation.
- High-pressure pneumatic circuits in CNC machinery
- Hydraulic test bench connections
- Semiconductor equipment gas delivery systems
- Robotic end-effector tooling air lines
- Vacuum chamber instrumentation ports
Installation protocol:
Apply 1.5 wraps of PTFE tape clockwise on male threads. Hand-tighten until snug,
then torque 1/4 turn with wrench. Avoid cross-threading - initial engagement
must rotate freely. Inspect O-rings quarterly for compression set.
| Property | Property Value |
|---|---|
| sku | BPC6M5 |
| Port Size | <6mm> |
| Connection Thread | M5×0.8 |
