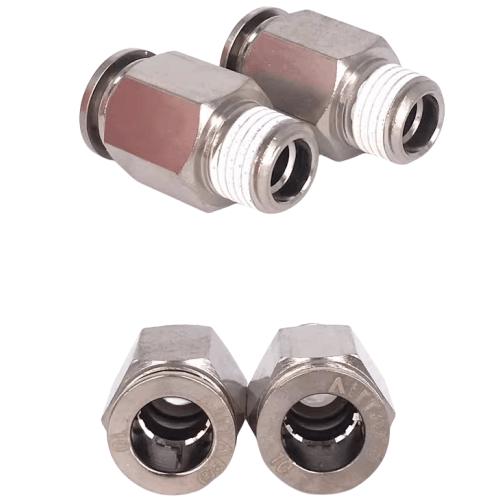

Airtac BPC Metal Straight Connector BPC801
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
AirTAC BPC801 Metal Straight Thread Connector Specifications
- Model: BPC801
- Material: Nickel-plated brass (anti-corrosion finish)
- Thread standard: BSPP (G1/8) / NPT1/8 selectable
- Max working pressure: 10 MPa (static) / 5 MPa (dynamic)
- Temperature range: -20℃ to 120℃ (seal compatible)
- Seal material: NBR (standard) / FKM (optional for high temp)
- Surface hardness: ≥HV200 (electroless nickel coating)
- Compliance: RoHS/REACH compliant
- Weight: 15.2g ±0.5g
- Dimensions: 31.5mm(L) × 12mm(OD) × 8mm(ID port)
- Thread engagement depth: 9.5mm (minimum)
- Torque resistance: 15-20 N·m (installation torque)
Precision-engineered metal connector featuring dual-seal structure with primary metal-to-metal sealing and secondary O-ring backup. The 360° swivel design enables flexible tube orientation adjustment post-installation. Rated for hydraulic (H series) and pneumatic (P series) applications.
- High-pressure pneumatic circuits in injection molding machines
- Hydraulic test bench instrumentation connections
- CNC machine tool coolant line interfaces
- Food processing equipment steam lines (FKM seal version)
- Semiconductor fab gas distribution systems
Installation protocol:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Hand-tighten plus 1/4 turn with wrench (max 25 N·m).
Avoid thread compound contamination on sealing surfaces.
Pressure test recommended after installation.
| Property | Property Value |
|---|---|
| sku | BPC801 |
| Port Size | <8mm> |
| Connection Thread | PT1/8 |
