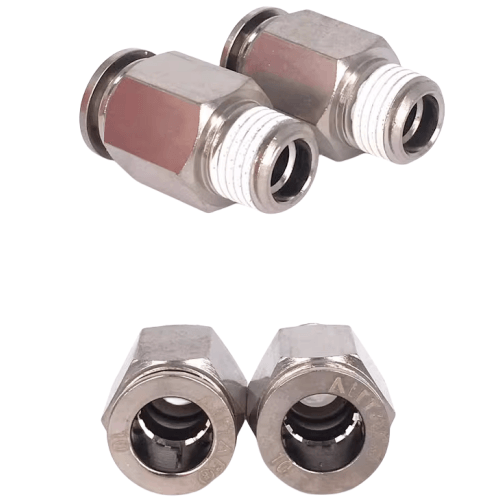

Airtac BPC Metal Straight Connector BPC803
2. Features excellent flow characteristics achieving equivalent flow capacity to tube inner diameter;
3. Tool-free push-to-connect design enables fast tube installation, with secure and durable pneumatic tube connections;
4. M5 metric threads with integrated sealing washers ensure leak-free threaded connections;
5. Nickel-plated body provides corrosion resistance and contamination prevention, extending service life;
6. Full-metal construction ensures reliable performance in high-temperature environments.
Category: Threaded Straight Connectors , Brand: AirTAC , Series: BPC
AirTAC BPC803 Metal Straight Thread Connector Technical Details
- Model: BPC803 (Metal series)
- Type: Straight-through compression fitting
- Thread standard: G1/8 (BSPP) female threads both ends
- Material: Brass (nickel-plated surface)
- Seal type: POM plastic sleeve + EPDM O-ring
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 120℃ (static state)
- Fluid compatibility: Air, water, non-corrosive gases
- Torque limit: 1.2-1.5 N·m during installation
- Certifications: RoHS compliant, ISO 8434-1 standard
- Weight: 18.5g ±0.5g
- Dimensions: 35mm(L) × 16mm(W) × 16mm(H)
- Surface roughness: Ra ≤3.2μm (internal bore)
Precision-machined brass connector featuring triple-sealing structure (thread seal + sleeve grip + O-ring) for leak-free performance in high-vibration environments. The 45° compression sleeve design allows 360° tube rotation after installation. Nickel plating provides corrosion resistance against moisture and mild chemicals.
- Pneumatic cylinder supply lines in packaging machinery
- Coolant line connections for CNC spindle units
- Vacuum system plumbing in semiconductor equipment
- Hydraulic sensor mounting in agricultural vehicles
- Compressed air distribution in dental chairs
Installation protocol:
Use PTFE tape on male threads only. Insert tube fully before tightening - the sleeve should retract 2-3mm.
Avoid overtightening; perform pressure test at 1.25× system pressure after assembly.
| Property | Property Value |
|---|---|
| sku | BPC803 |
| Port Size | <8mm> |
| Connection Thread | PT3/8 |
