Description

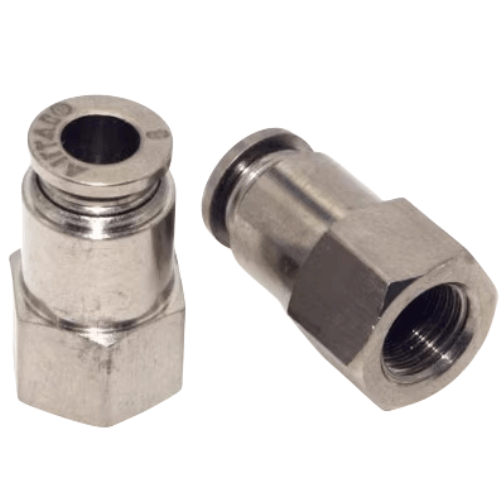

BPCF Female Threaded Metal Straight Connector
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
Installation Protocol:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding).
Use 12mm open-end wrench on hex section - torque ≤15N·m.
Pressure test recommended after 24hrs of installation.
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF1002 Metal Female Thread Straight Connector Specifications
- Model: BPCF1002
- Type: Female Thread to Tube Straight Fitting
- Material: Brass with Nickel Plating (Anti-Corrosion)
- Thread Standard: Metric (M) / BSPP (G) Optional
- Thread Size: M5×0.8 / G1/8 (Customizable)
- Tube OD Compatibility: 6mm (Standard), 4mm/8mm Available
- Pressure Range: 0.05-1.0 MPa
- Temperature Range: -20℃ to 80℃
- Seal Material: NBR (Nitrile Rubber)
- Vibration Resistance: ≤5Hz @ 2.5mm Amplitude
- IP Rating: IP40 (Dust Protected)
- Certifications: RoHS, REACH, ISO9001
- Weight: 28g ±1g
- Dimensions: 30mm(L) × 12mm(Dia) × 12mm(Hex Width)
High-pressure resistant brass connector with precision-machined threads and dual O-ring design for leak-free pneumatic/hydraulic connections. Features 360° rotatable tube end for flexible installation alignment. Compatible with air, water, and non-corrosive fluids.
Typical Applications:
- Pneumatic cylinder manifold assemblies
- Compressed air distribution systems
- CNC machine tool coolant lines
- Industrial robot end-effector tooling
- Hydraulic gauge instrumentation ports
Installation Protocol:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding).
Use 12mm open-end wrench on hex section - torque ≤15N·m.
Pressure test recommended after 24hrs of installation.
Fluid Compatibility:
- Optimal: Air, Nitrogen, Water (≤60℃)
- Limited Use: Hydraulic Oil (ISO VG32-68)
- Not Recommended: Acids, Ketones, Chlorinated Solvents
| Property | Property Value |
|---|---|
| sku | BPCF1002 |
| Port Size | <10mm> |
| Connection Thread | PT1/4 |
