Airtac BPCF Female Thread Straight Through Fitting BPCF1003
$5.80
Regular price
$13.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPCF1003
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

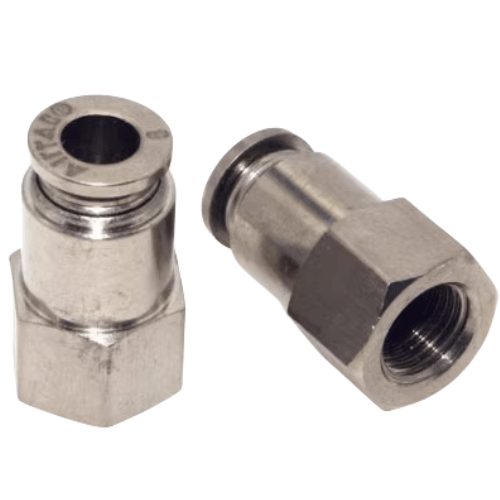

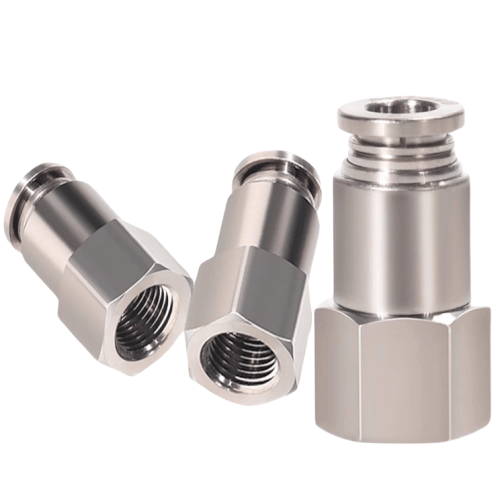

BPCF Female Threaded Metal Straight Connector
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
Mounting guidance:
Apply thread sealant to outer 2 threads only. Tighten to 1.2-1.5 N·m torque.
Avoid side-loading – use support brackets for cantilevered connections.
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF1003 Metal Female Thread Straight Connector Technical Details
- Model: BPCF1003
- Thread Standard: Metric (M5×0.8 female threads both ends)
- Material: Brass with nickel plating (base), NBR/FKM seals
- Max Working Pressure: 1.5 MPa (15 bar)
- Burst Pressure: ≥4.5 MPa
- Temperature Range: -20℃ to 150℃ (NBR) / -20℃ to 180℃ (FKM)
- Surface Hardness: HV200-250 nickel layer
- Flow Coefficient (Cv): 0.12
- Weight: 18.5±0.5g
- Dimensions: 22mm(L) × 12mm(W) × 12mm(H)
- Thread Engagement Depth: 6mm minimum
- Leakage Rate: ≤3×10⁻⁴ Pa·m³/s under 0.5 MPa
- Vibration Resistance: 10-2000Hz, 15G acceleration
Precision-machined brass connector with dual female threads designed for high-vibration environments. Features anti-corrosion nickel plating and pressure-adaptive sealing geometry. The chamfered entry ports prevent O-ring damage during assembly.
Installation & Applications:
- Pneumatic cylinder port connections
- Sensor mounting interfaces in robotic arms
- Modular piping systems requiring 90° rotation adjustment
- High-temperature paint spray equipment
- Vacuum line junctions (when paired with anaerobic sealant)
Mounting guidance:
Apply thread sealant to outer 2 threads only. Tighten to 1.2-1.5 N·m torque.
Avoid side-loading – use support brackets for cantilevered connections.
Matched Components:
- Optimal with Φ6mm OD nylon/PU tubing (0.5-1mm wall thickness)
- Pairs with AKN-05 series nuts for tube retention
- Use ASP1103 thread sealant for chemical resistance
| Property | Property Value |
|---|---|
| sku | BPCF1003 |
| Port Size | <10mm> |
| Connection Thread | PT3/8 |
