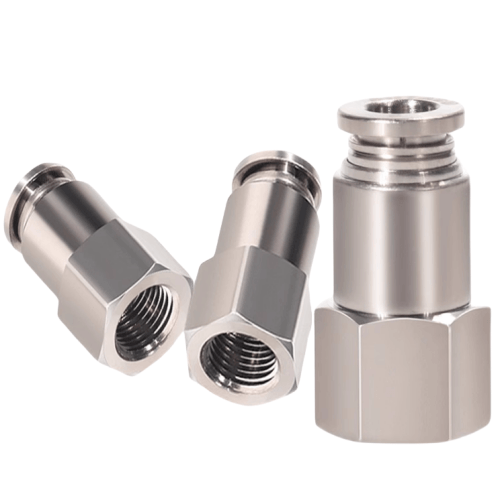

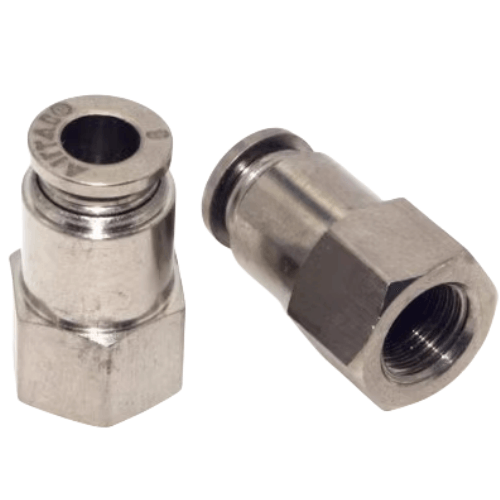

Airtac BPCF Female Thread Straight Through Fitting BPCF1204
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF1204 Metal Female Thread Straight Fitting Detailed Specifications
- Model: BPCF1204
- Thread Standard: Metric (M) / BSPP (G) compatible
- Female Thread Size: M12×1.5 / G1/8
- Material: Nickel-plated brass (CuZn39Pb3)
- Surface Hardness: ≥HV200
- Seal Material: NBR (Nitrile) rubber
- Pressure Range: 0.05-1.5 MPa (7-217 PSI)
- Temperature Range: -20℃ to 80℃ (NBR seals)
- Proof Pressure: 3.0 MPa (435 PSI)
- Burst Pressure: ≥6.0 MPa (870 PSI)
- Flow Coefficient (Cv): 0.23
- Weight: 48g ±2g
- Dimensions: 34mm(Length) × 17mm(Width) × 17mm(Height)
- Port-to-Port Length: 26mm
- Hex Size: 17mm wrench flat
- Compliance: RoHS compliant
Precision-machined straight connector featuring dual sealing structure with primary metal-to-metal contact and secondary NBR seal. The electroplated nickel layer provides corrosion resistance in humid environments. Designed for zero-leakage performance in high-vibration applications through optimized thread engagement geometry.
- Pneumatic cylinder port connections in CNC machinery
- Modular piping systems for semiconductor fab equipment
- High-cycle automation test rigs requiring vibration resistance
- Hydraulic measurement instrument calibration setups
- Compressed air distribution in food processing lines
Installation protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps). Hand-tighten first,
then torque to 14-16 N·m using calibrated wrench. Perform pressure test
at 1.25× working pressure after installation.
