Airtac BPCF Female Thread Straight Through Fitting BPCF401
$4.15
Regular price
$11.65
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPCF401
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

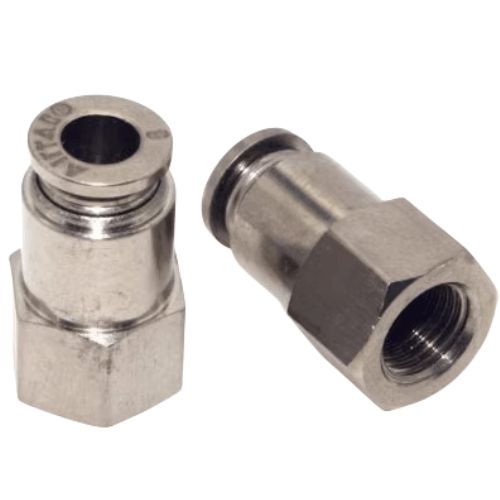

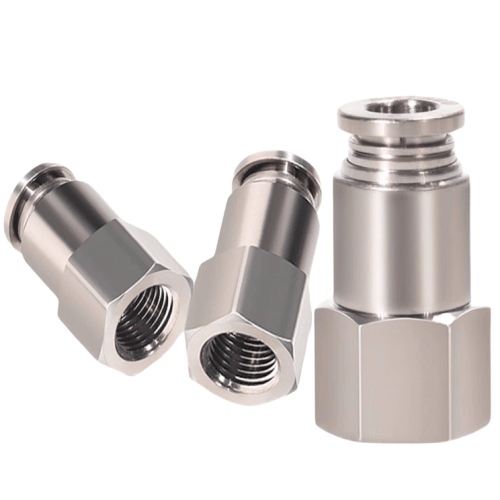

BPCF Female Threaded Metal Straight Connector
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
Installation protocol:
Apply thread sealant to male threads (PTFE tape recommended).
Hand-tighten plus 1/4 turn with wrench. Ensure tubing is cut
square and deburred before insertion. Max reconnection cycles: 10.
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF401 Metal Internal Thread Straight Connector Specifications
- Model: BPCF401
- Thread Standard: Metric (M5×0.8 internal thread)
- Material: Stainless Steel 303 (corrosion-resistant)
- Seal Type: Integrated O-ring (NBR rubber)
- Pressure Rating: 0.05–1.5 MPa (7–217 psi)
- Temperature Range: -20℃ to 150℃ (-4°F to 302°F)
- Port Connection: One-touch fitting for Ø4mm tubing
- Surface Treatment: Electropolished finish (Ra ≤0.8μm)
- Weight: 18g ±0.5g
- Dimensions: 25mm(L) × 16mm(W) × 16mm(H)
- Thread Engagement Depth: 6mm (minimum)
- Torque Limit: 0.7–1.2 N·m (6–10.6 in-lb)
Precision-machined straight connector with dual sealing zones, designed for leak-free transitions between metric threaded ports and push-to-connect tubing. Features 360° rotatable fitting for flexible installation angles. Compatible with air, water, and inert gases.
Typical Applications:
- Pneumatic valve manifold interconnections
- Coolant line adapters in CNC machinery
- Vacuum system instrumentation ports
- Medical gas delivery systems
- Semiconductor equipment fluid lines
Installation protocol:
Apply thread sealant to male threads (PTFE tape recommended).
Hand-tighten plus 1/4 turn with wrench. Ensure tubing is cut
square and deburred before insertion. Max reconnection cycles: 10.
| Property | Property Value |
|---|---|
| sku | BPCF401 |
| Port Size | <4mm> |
| Connection Thread | PT1/8 |
