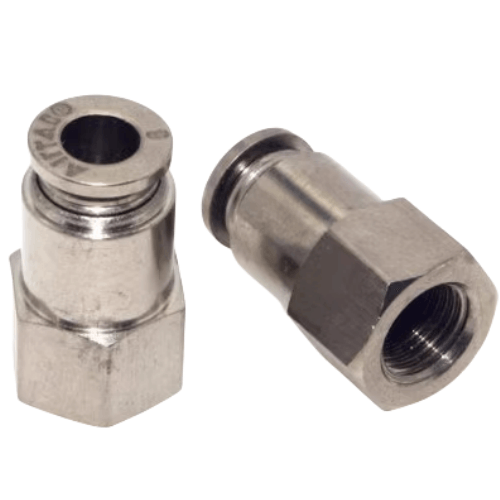

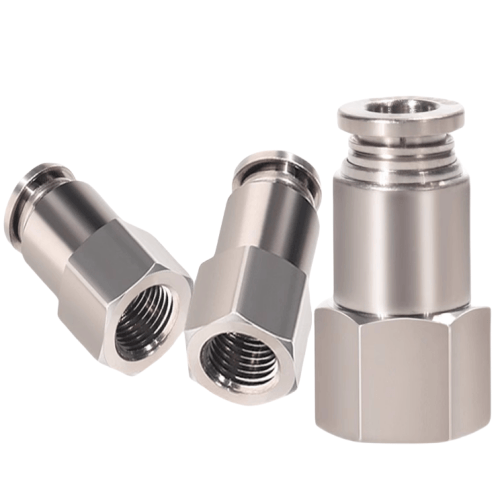

Airtac BPCF Female Thread Straight Through Fitting BPCF4M5
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF4M5 Metal Female Thread Straight Fitting Specifications
- Model: BPCF4M5
- Type: Metal female thread straight connector
- Thread specification: M5×0.8 (metric fine thread)
- Material: Brass with nickel plating (corrosion resistant)
- Port configuration: Female thread to female thread (F/F)
- Operating pressure: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Weight: 15±1g
- Dimensions: 20mm(L) × 10mm(W) × 10mm(H)
- Surface roughness: Ra ≤1.6μm
- Pressure test: 2.25 MPa air tightness (150% of max pressure)
- Compliance standards: ISO 9001, RoHS
Precision-machined brass fitting with full-flow design, featuring corrosion-resistant nickel plating and self-aligning threads. The dual-seal structure combines metal-to-metal contact with elastic NBR sealing for zero-leak performance. Rated for 500,000+ actuation cycles under standard conditions.
- Pneumatic cylinder port connections in robotic arms
- Modular piping systems for CNC machine tool coolant lines
- Vacuum circuit junctions in packaging machinery
- Compressed air distribution in automotive assembly fixtures
- Instrumentation gas sampling systems
Installation protocol:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 1.2-1.5 N·m torque using 8mm open-end wrench.
Avoid overtightening which may deform sealing surfaces.
| Property | Property Value |
|---|---|
| sku | BPCF4M5 |
| Port Size | <4mm> |
| Connection Thread | M5×0.8 |
