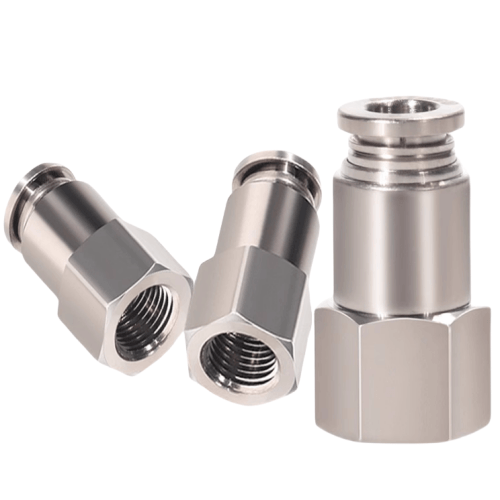

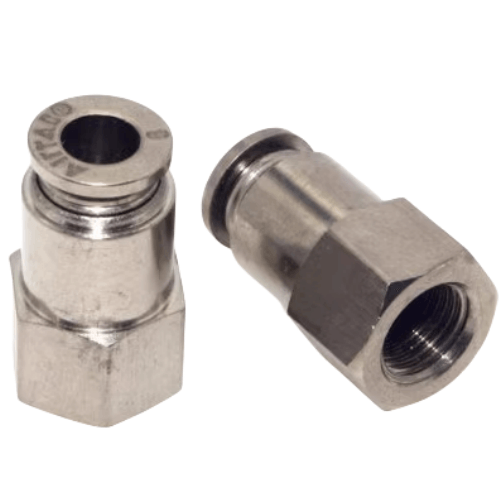

Airtac BPCF Female Thread Straight Through Fitting BPCF601
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF601 Metal Female Thread Straight Fitting Specifications
- Model: BPCF601
- Type: Metal female threaded straight connector (BSPP)
- Thread standard: G1/8 (ISO 228-1 compliant)
- Material: Brass (nickel-plated surface)
- Seal material: NBR (Nitrile rubber)
- Pressure rating: 0.2-1.5 MPa (29-218 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Installation torque: 1.5-2 Nm (13-18 lb-in)
- Surface roughness: Ra ≤3.2μm
- Weight: 25g ±2g
- Dimensions: 18mm(L) × 12mm(Dia.) × 10mm(Hex)
- Hex key size: 8mm
- Corrosion resistance: 96hrs salt spray test passed
Precision-machined straight connector with leak-proof design, featuring dual sealing structure (metal-to-metal primary seal + NBR secondary seal). The electroplated nickel coating provides enhanced corrosion resistance for humid environments. Internal flow path optimized for minimal pressure drop (ΔP <0.01MPa @1MPa).
- Pneumatic cylinder port connections
- Compressed air distribution manifolds
- Industrial robot end-effector tooling
- CNC machine tool pneumatic circuits
- Semiconductor equipment gas lines
- Packaging machine actuator linkages
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads. Tighten until the hex flats
contact the mating surface - DO NOT overtighten. Maximum angular
misalignment tolerance: ±3°. Compatible with ISO 15407-1 compliant tubing.
| Property | Property Value |
|---|---|
| sku | BPCF601 |
| Port Size | <6mm> |
| Connection Thread | PT1/8 |
