Airtac BPCF Female Thread Straight Through Fitting BPCF602
$4.67
Regular price
$12.17
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPCF602
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

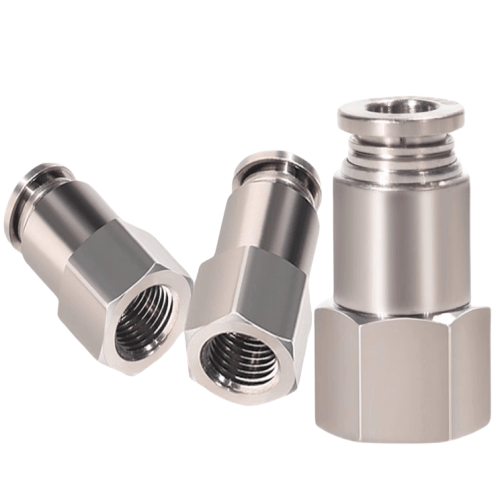

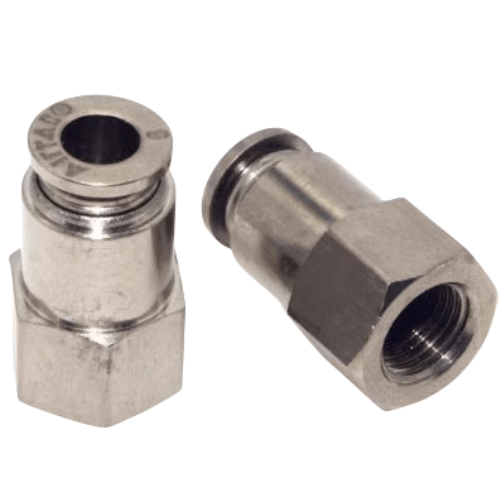

BPCF Female Threaded Metal Straight Connector
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
Installation note:
Apply 0.5-0.8N·m torque during assembly. Use thread sealant only on male threads,
avoiding contact with O-ring surfaces. Perform pressure test at 1.25×working pressure
after installation.
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF602 Metal Female Thread Straight Connector Specifications
- Model: BPCF602
- Thread type: Metric internal thread (female)
- Port size: M5×0.8 (parallel thread)
- Material: Nickel-plated brass (C3604)
- Surface hardness: ≥HV200
- Pressure rating: 0.05–1.5 MPa
- Burst pressure: ≥6 MPa
- Temperature range: -20℃ to 120℃
- Seal material: NBR (nitrile) O-ring
- Weight: 8.5±0.3g
- Dimensions: 15.5mm(L) × 12mm(W) × 12mm(H)
- Torque resistance: ≤2.5N·m
- Fluid compatibility: Air, inert gases, non-corrosive gases
- Certification: RoHS compliant
Precision-machined connector with triple-layer nickel plating for enhanced corrosion resistance. Features 360° rotatable collar for tool-free installation in confined spaces. The tapered seat design ensures leak-proof connections even under vibration conditions.
Typical Applications:
- Pneumatic tool air supply lines
- Robotic arm pneumatic circuit junctions
- CNC machine air pressure sensors
- Industrial dryer compressed air distribution
- Food packaging machine actuator connections
Installation note:
Apply 0.5-0.8N·m torque during assembly. Use thread sealant only on male threads,
avoiding contact with O-ring surfaces. Perform pressure test at 1.25×working pressure
after installation.
| Property | Property Value |
|---|---|
| sku | BPCF602 |
| Port Size | <6mm> |
| Connection Thread | PT1/4 |
