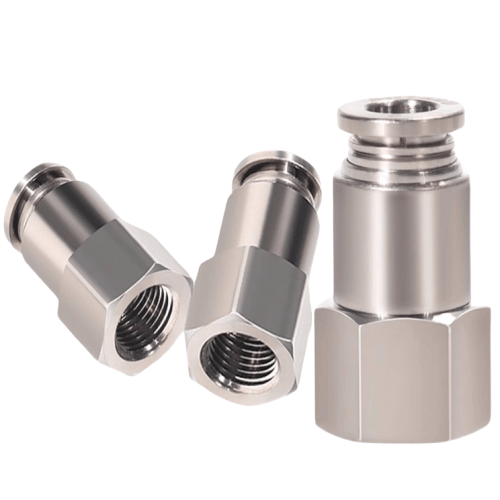

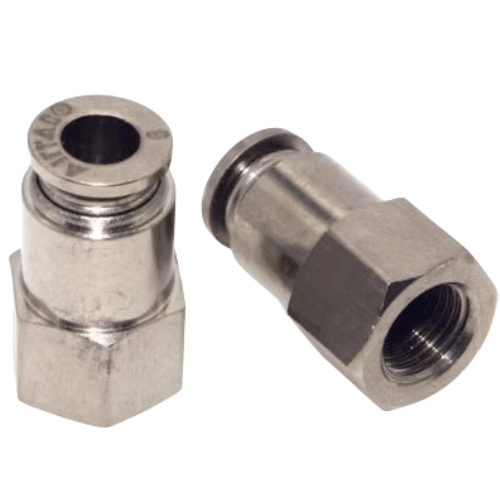

Airtac BPCF Female Thread Straight Through Fitting BPCF801
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF801 Metal Female Thread Straight Connector Specifications
- Model: BPCF801
- Thread Type: Metric internal thread (Female)
- Thread Size: M8×1.0 (parallel thread)
- Material: Brass with nickel plating (stainless steel optional)
- Seal Material: NBR (Nitrile) rubber
- Pressure Range: 0.5-10 MPa (72.5-1450 psi)
- Burst Pressure: ≥15 MPa (2175 psi)
- Temperature Range: -20℃ to 80℃ (-4℉ to 176℉)
- Flow Rate: 250 NL/min @ 0.5 MPa
- Weight: 24.5±0.5g
- Dimensions: 30mm(L) × 12mm(Dia) × 12mm(Hex)
- Hex Wrench Size: 12mm
- Surface Roughness: Ra ≤3.2μm
- Certification: RoHS compliant
High-pressure brass connector with precision-machined threads and dual O-ring seals, designed for leak-free connections in compact pneumatic systems. Features 360° rotatable port alignment and anti-vibration grooves. Compatible with air, inert gases, and hydraulic fluids (NBR-compatible media).
- Robotic arm pneumatic circuits
- CNC machine tool air supply lines
- Compressed air distribution manifolds
- Vacuum system quick-connect interfaces
- Hydraulic test bench fittings
Installation note:
Apply thread sealant to male threads only. Tighten to 12-15 N·m torque using 12mm wrench.
Avoid overtightening to prevent thread deformation. Inspect O-rings quarterly in high-cycle applications.
- Pipes: OD φ8mm polyurethane/nylon tubing
- Thread Adapters: BPCFM801 series
- Tooling: AIRTAC TWN-12 installation wrench
| Property | Property Value |
|---|---|
| sku | BPCF801 |
| Port Size | <8mm> |
| Connection Thread | PT1/8 |
