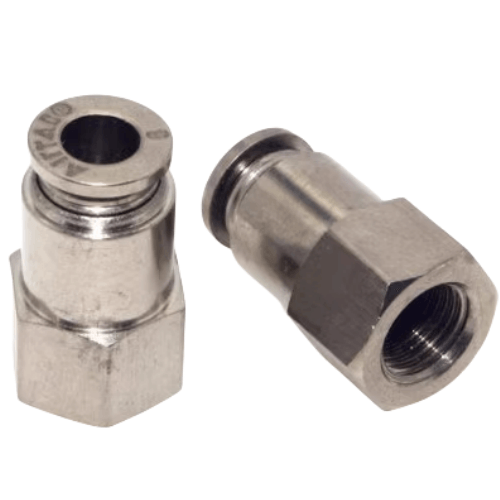

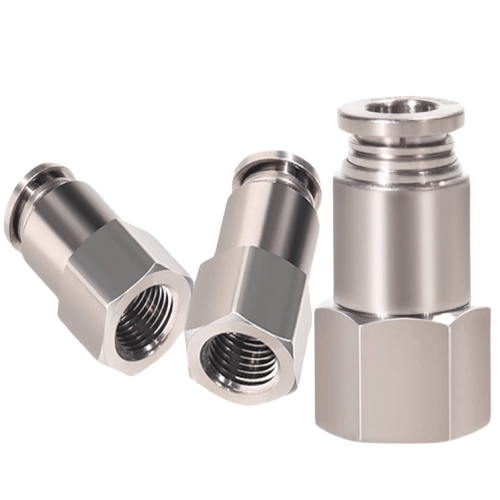

Airtac BPCF Female Thread Straight Through Fitting BPCF802
1. Full-metal threaded straight connector with copper-containing internal components; Available in multiple models/specifications for diverse pneumatic system applications;
2. Superior flow characteristics with capacity equivalent to tubing inner diameter;
3. Tool-free tube insertion/extraction mechanism ensures fast operation; Secure and durable polyurethane tube connection;
4. Integrated hermetic sealing design - M5 metric threads with integrated sealing washers guarantee leak-free threaded connections;
5. Nickel-plated brass construction prevents corrosion and contamination, ensuring extended service life;
6. Full-metal configuration enables reliable performance in high-temperature environments.
Category: Female Threaded Straight Connectors | Brand: AirTAC | Series: BPCF
AirTAC BPCF802 Metal Female Thread Straight Fitting Detailed Specifications
- Model: BPCF802
- Type: 90° Elbow Threaded Straight Connector
- Thread Standard: Metric (M5×0.8 female thread)
- Material: Brass with nickel plating (CuZn39Pb3)
- Seal Material: NBR (Nitrile) O-ring
- Operating Pressure: 0.5-1.6 MPa (72.5-232 psi)
- Proof Pressure: 2.4 MPa
- Burst Pressure: ≥3.2 MPa
- Temperature Range: -20℃ to 80℃ (NBR seal compatible)
- Surface Roughness: Ra≤3.2μm (sealing areas)
- Port-to-Port Length: 32±0.5mm
- Hex Size: 18mm across flats
- Weight: 25±2 grams
- Dimensions: 32mm(L) × 18mm(W) × 18mm(H)
- Vibration Resistance: 10-60Hz, 1.5mm amplitude
- Corrosion Protection: 96hr neutral salt spray test passed
Heavy-duty pneumatic connector featuring precision-machined leak-proof structure with dual sealing points. The 90° elbow design optimizes space utilization in compact pneumatic circuits while maintaining smooth airflow (Cv=0.08). Nickel plating provides enhanced wear resistance against repeated tool connections.
- Pneumatic cylinder port adapters in automation equipment
- Modular assembly systems requiring quick-connect fittings
- Compressed air distribution in food processing machinery (FDA-compliant lubricants used)
- Vacuum line connections for material handling systems
- Instrumentation air supply in semiconductor manufacturing
Installation protocol:
Apply 1.5-2.0 N·m torque during installation. Use compatible thread sealant (PTFE tape or liquid sealant) on male threads only.
Avoid overtightening - maximum allowable deformation ≤0.1mm. Perform pressure test at 1.25× working pressure after assembly.
| Property | Property Value |
|---|---|
| sku | BPCF802 |
| Port Size | <8mm> |
| Connection Thread | PT1/4 |
