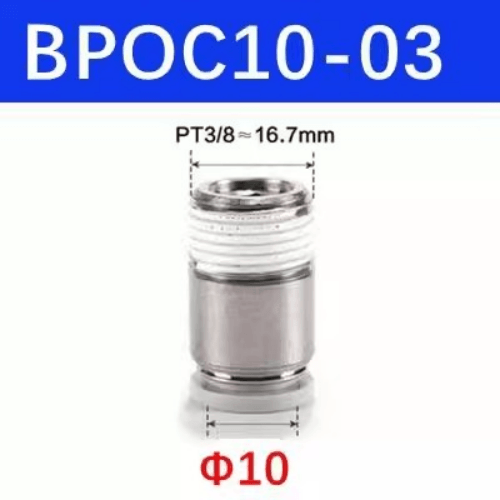

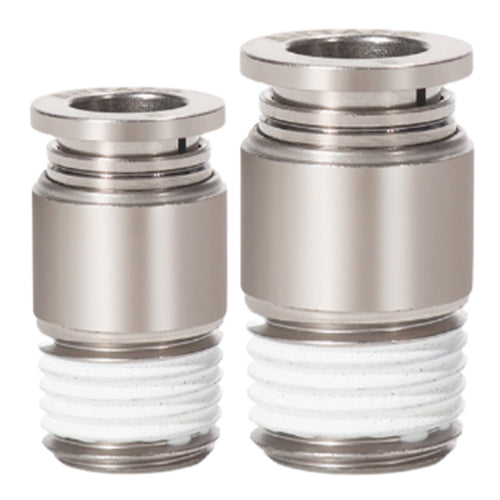

Airtac BPOC Metal Round Thread Straight Connector BPOC1003
2. Superior flow characteristics matching tubing's nominal inner diameter for maximum flow capacity;
3. Push-to-connect design enables quick tubing installation/removal with secure ozone-resistant connections;
4. M5 metric threads integrated with sealing washer ensure leak-proof threaded connections;
5. Nickel-plated brass construction resists corrosion and contamination for extended service life;
6. All-metal structure maintains performance integrity in high-temperature environments (0-80°C).
AirTAC BPOC Metallic Round Thread Straight Connector BPOC1003 Specifications
- Model: BPOC1003
- Thread type: Metric fine thread (M thread)
- Port connection: 10mm OD tube × 1/8" BSPP female thread
- Material: Nickel-plated brass (CuZn39Pb3)
- Surface treatment: Electroplated nickel (8-12μm thickness)
- Pressure rating: 0.05-1.5 MPa (7-217 psi)
- Temperature range: -20℃ to 120℃ (continuous use)
- Seal type: EPDM O-ring (standard), optional NBR/Viton
- Tightening torque: 12-15 N·m (recommended)
- Weight: 25g ±1g
- Dimensions: 30mm(L) × 12mm(Diameter) × 12mm(Port width)
- Vibration resistance: ≤20m/s² (ISO 10816-3 compliant)
- Certifications: RoHS 2011/65/EU, REACH SVHC
Precision-machined straight-through pneumatic connector with 360° rotatable fitting design, featuring triple-lead thread for quick sealing. The electroless nickel plating provides superior corrosion resistance in humid environments. Designed for high-vibration applications with anti-loosening thread structure.
- Pneumatic cylinder port connections
- Compressed air distribution manifolds
- CNC machine tool pneumatic circuits
- Food processing equipment (with food-grade grease option)
- Semiconductor manufacturing gas lines
Installation note:
Use two wrenches during assembly - one to hold the hex body and another to tighten the nut.
Apply thread sealant only on male threads, avoiding contact with O-ring surfaces.
Maximum angular misalignment tolerance: ±3°.
| Property | Property Value |
|---|---|
| sku | BPOC1003 |
