Airtac BSL General Purpose Silencer BSL01-S
SUS304 stainless variant (-S)The AirTAC Airtac BSL General Purpose Silencer BSL01-S is a genuine universal silencer that cuts exhaust noise by 20 dB at 0.5 MPa using a copper-particle sintered element in a SUS304 body.
- TypeUniversal silencer
- SeriesBSL
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Noise reduction20 dB
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac BSL General Purpose Silencer BSL01-S

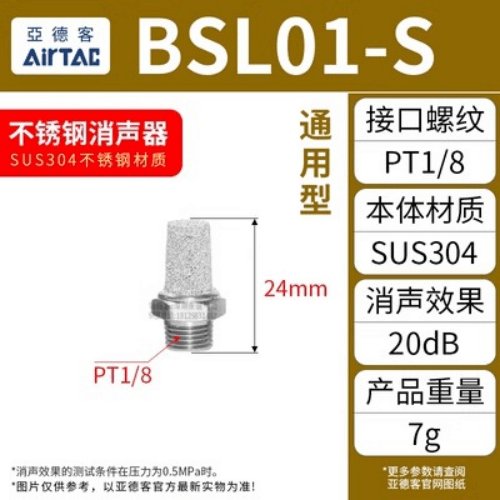

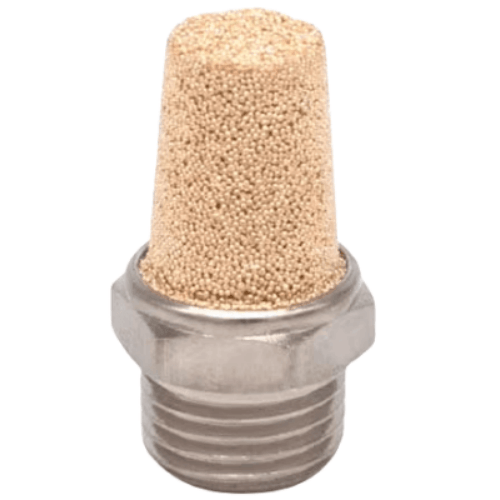

Every time a directional valve dumps its air, the exhaust port fires a pressure pulse that the ear hears as a sharp crack. A silencer screwed into that port breaks the pulse up before it leaves the machine. The BSL01-S is the stainless-steel BSL universal silencer in the 1/8in (01) PT thread, and it cuts exhaust noise by 20 dB at 0.5 MPa using a copper-particle sintered sound-absorbing element carried in a SUS304 body.
What sets the BSL01-S apart from the standard BSL01 is that body material. The SUS304 housing stands up to wash-down, salt-laden air, plating-fume atmospheres and other corrosive conditions that would chew through an aluminium-alloy silencer, while the damping element and the pressure, vacuum, proof-pressure and temperature ratings stay exactly as the standard line. It fits any valve or cylinder port tapped 1/8in PT and back-seats onto a flat sealing face, so no thread tape or sealant is needed on the exhaust fitting.
Airtac BSL General Purpose Silencer BSL01-S Technical Specifications
| Model | Airtac BSL General Purpose Silencer BSL01-S |
|---|---|
| Type | Universal silencer |
| Series | BSL |
| Noise reduction | 20 dB at 0.5 MPa |
| Element | Copper-particle sintered element in a sus304 body |
| Body material | Stainless steel 304 (-S variant) |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. Stainless (-S): SUS304 silencer body. The sound-absorbing element remains copper-particle sintered, so this variant is specified for corrosion resistance rather than as a wholly copper-free part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac BSL General Purpose Silencer BSL01-S
| BSL | Universal silencer. |
|---|---|
| 01 / 02 / 03 / 04 | Thread: 1/8", 1/4", 3/8", 1/2". M5 where the series offers it. |
| D | Black. Blank = grey. |
| -S | Stainless-steel body. |
Choosing a Silencer
- check Sintered-brass types (BSL / BSLM / BESL) give 13 dB and take rough treatment.
- check Resin types (PAL / PALM / PPA) give 25 dB and weigh far less.
- check PPA plugs straight into a tube instead of a thread, and is copper-free for sensitive processes.
- check BESL adds an adjustable throttle, so it silences AND sets exhaust speed in one part.
- check An undersized or clogged silencer shows up as a slow return stroke - size it to the valve's exhaust port.
Where the Airtac BSL General Purpose Silencer BSL01-S Is Used
Food-plant wash-down stations
On packaging and tray-sealing machines cleaned with caustic spray between shifts, a SUS304 body on the 1/8in valve exhaust survives the hose-down that corrodes an aluminium silencer.
Electroplating and chemical dosing skids
Acid and alkali fumes near plating lines and dosing cabinets rapidly pit aluminium parts; the stainless BSL01-S keeps silencing a 1/8in dump valve in that atmosphere.
Marine and dockside pneumatics
Salt air on hatch-cover actuators, deck winches and quay-side control panels eats standard silencers within months; the SUS304 housing resists the corrosion and holds the 20 dB cut.
Is the Airtac BSL General Purpose Silencer BSL01-S the Right Part?
The stainless BSL series gives 15 dB of attenuation on the M5 thread and 20 dB on 1/8in, 1/4in, 3/8in and 1/2in, so BSL01-S sits in the 20 dB group. Below it is the M5 BSLM5-S, which trades attenuation and flow capacity for the smallest possible body; above it is BSL02-S in 1/4in, which moves more exhaust air on bigger valve ports. Always match the silencer thread to the valve exhaust port itself rather than stepping down to a smaller part on an adapter - an undersized silencer restricts the dump and stretches the cylinder return stroke.
Choose the -S over the standard BSL01 whenever the machine is hosed down, runs in a marine or chemical atmosphere, or serves a process that forbids copper contamination. Where weight and cosmetics matter more than corrosion, the resin PAL01 reaches 25 dB; where you also need to throttle exhaust speed, the BESL01-S combines silencing with an adjustable exhaust valve.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
- ✓ Noise target: 13 dB metal or 25 dB resin
Airtac BSL General Purpose Silencer BSL01-S FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure -750 mmHg (10 Torr), proof pressure 1.5 MPa, ambient and media temperature -20 to +70 C. This SKU is the 1/8in (01) PT-thread stainless version of the BSL series, with a SUS304 body and a copper-particle sintered silencing element giving 20 dB of noise reduction at 0.5 MPa.
No. The -S suffix swaps the aluminium-alloy body for SUS304; pressure, vacuum, proof pressure, temperature limits, thread sizes and external dimensions all match the standard BSL. The silencing figure does change with material: this stainless 1/8in version is rated 20 dB at 0.5 MPa, and note the sintered element itself is copper-particle, so specify a resin PAL or an all-resin PPA if your process requires a genuinely copper-free part.
