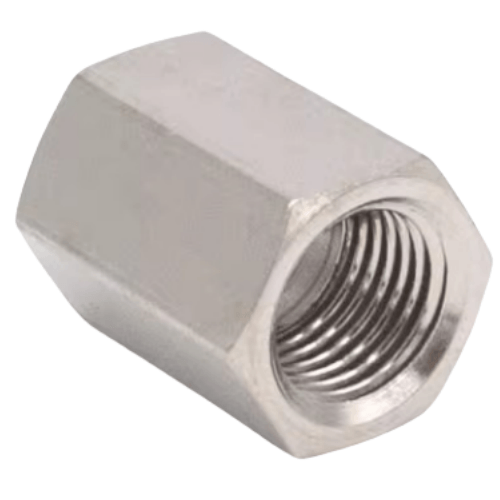

Airtac BU Double Female Thread Straight Connector BU0303-S
AirTAC BU0303-S Double Female Threaded Straight Connector
- Model: BU0303-S
- Type: Double female threaded straight connector (BSPP/BSPT compatible)
- Thread specification: 1/8" BSPP (G1/8) at both ends
- Material: Lead-free brass CW617N (RoHS compliant)
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6 MPa (870 psi)
- Temperature range: -20℃ to 120℃
- Seal type: Metal-to-metal seal with optional O-ring (NBR available)
- Torque resistance: ≤25 N·m installation torque
- Weight: 18.5±0.5g
- Dimensions: 25mm(Total Length) × 12mm(Hex Width) × 12mm(Height)
- Fluid compatibility: Air, water, non-corrosive gases
- Vibration resistance: 10-2000Hz, 10G acceleration
Precision-machined straight connector featuring dual female threads with leak-proof design. The hexagonal center allows standard wrench tightening, while the nickel plating provides corrosion resistance in humid environments. Designed for zero-clearance installations in compact pneumatic systems.
- Pneumatic cylinder port extensions
- Modular assembly in FRL (Filter-Regulator-Lubricator) units
- Vacuum system tubing connections
- Medical gas line distribution
- 3D printer pneumatic circuit junctions
Installation guidance:
Apply 2-3 wraps of PTFE tape on male threads before assembly.
Use 12mm open-end wrench for installation - avoid over-tightening beyond 20N·m.
Pressure test recommended after installation.
| Property | Property Value |
|---|---|
| sku | BU0303-S |
