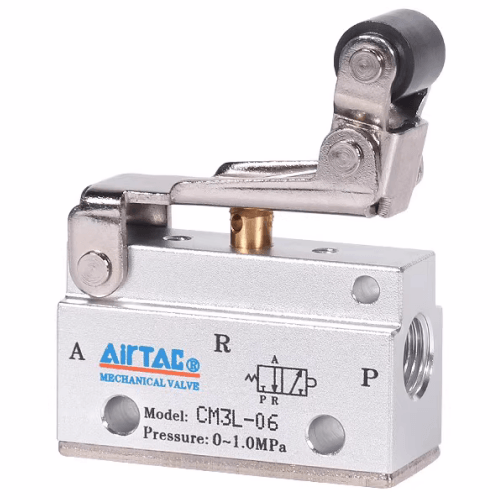

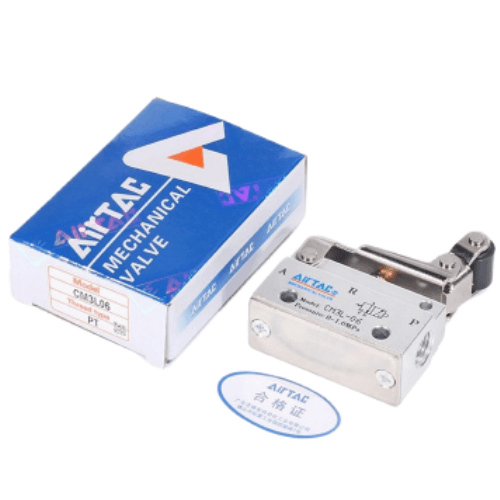

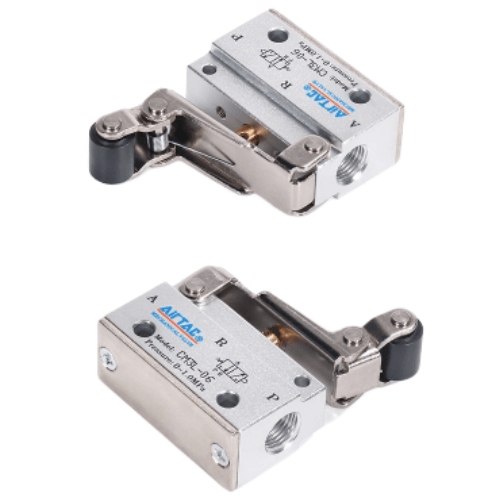

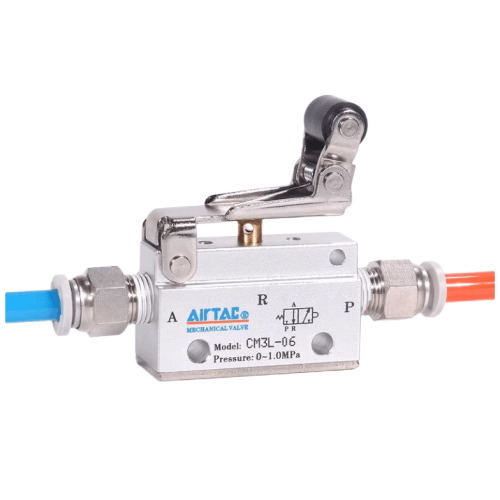

Airtac CM3L One-way Roller Lever Type Mechanical Valve CM3L08
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations, optimized for varied operational conditions;
3. Poppet valve design ensures excellent sealing performance, positive directional control, and maintenance-free operation without lubrication;
4. Multi-position mounting capability simplifies installation flexibility;
5. CM3L, CM3V, CM3R, and CM3Y series employ metallic actuators for extended service life and consistent reliability in demanding environments;
6. CM3PMS and CM3PMX models incorporate metal protective guards to shield pushbuttons from accidental actuation and mechanical interference, ensuring secure operation.
Category: Mechanical Valves , Brand: AirTAC , Series: CM3L Unidirectional Roller Lever Mechanical Valve
AirTAC CM3L08 Unidirectional Roller Lever Mechanical Valve Specifications
- Model: CM3L08
- Type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.05–0.8 MPa
- Operating force: 1.5N ±0.3N (lever actuation)
- Body material: Reinforced PBT + glass fiber
- Seal material: Heat-resistant NBR
- Temperature range: -20℃ to 80℃ (no ice formation)
- Weight: 195g ±5g
- Dimensions: 60mm(L) × 30mm(W) × 25mm(H)
- Mounting: Standard 20mm rail or direct screw mounting
- Lever stroke: 3mm ±0.5mm
- Reset method: Spring return
- Fluid compatibility: Air (ISO 8573-1:2010 Class 4)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥1 million operations
High-sensitivity mechanical valve featuring roller-lever actuation for precise position detection in harsh environments. The chrome-plated stainless steel roller reduces friction wear, while the dual-seal structure prevents internal leakage. Optimized for high-cycle applications requiring tactile feedback.
- Conveyor belt object detection systems
- Automated door safety interlocks
- Packaging machine position confirmation
- Robotic arm end effector positioning
- Material handling equipment limit switches
Installation guidelines:
Mount lever arm perpendicular to target object's movement path.
Maintain 0.5-1mm gap between roller and actuator. Lubricate pivot
point every 50,000 cycles using silicone-based grease (viscosity
100-150 cSt). Avoid side-loading exceeding 2N.
| Property | Property Value |
|---|---|
| sku | CM3L08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
