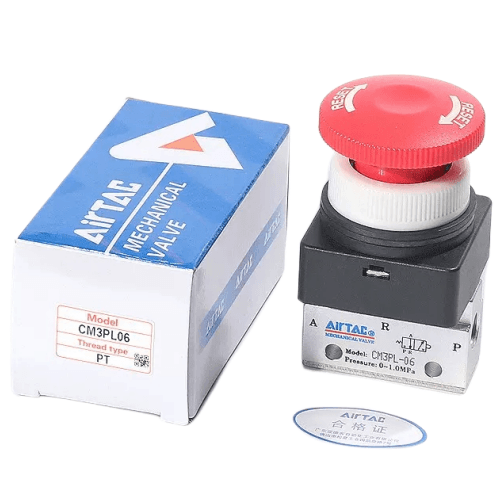

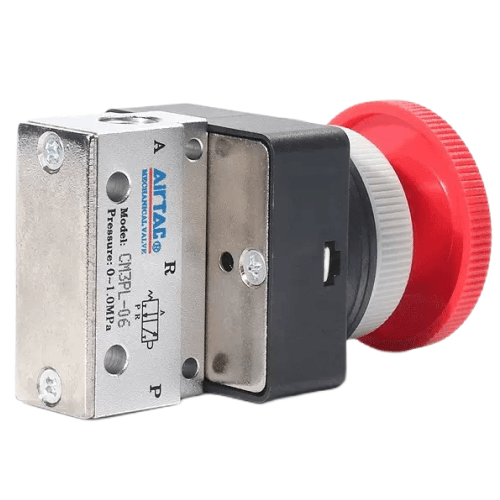

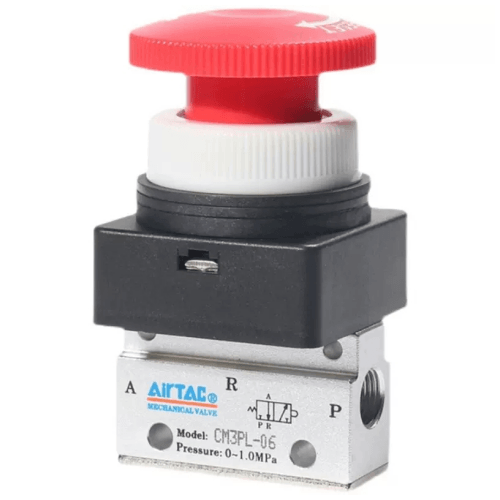

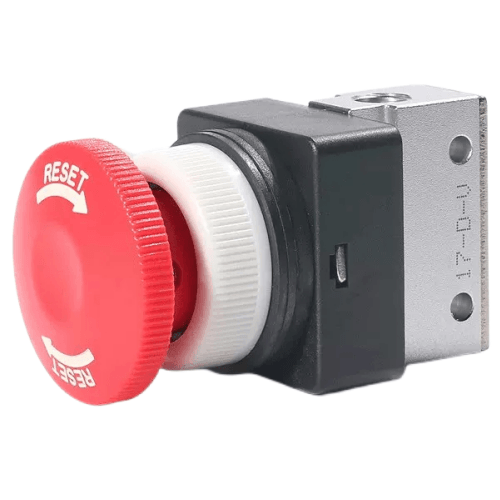

Airtac CM3PL Detent Rotary Button Type Mechanical Valve CM3PL06
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for versatile application scenarios.
3. Poppet valve structure ensures superior sealing performance, smooth shifting action, and maintenance-free lubrication.
4. Supports multi-position mounting configurations for flexible installation and operation.
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life and enhanced operational reliability.
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard button caps against accidental actuation and mechanical interference, ensuring fail-safe performance.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PL Park & Rotate Button Mechanical Valve
AirTAC CM3PL06 Detented Rotary Button Mechanical Valve Specifications
- Model: CM3PL06
- Type: 3-position detented rotary valve (Push-lock type)
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 450 NL/min (ANR)
- Actuation force: 3.5 N·m torque requirement
- Body material: Anodized aluminum alloy
- Seal material: HNBR (High-grade hydrogenated nitrile)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 280g (9.9 oz)
- Dimensions: 54mm(L) × 38mm(W) × 68mm(H) (2.13" × 1.5" × 2.68")
- Mounting: Panel mount with M5 fasteners
- Position indication: Tactile click feedback with 45° rotation per position
- Protection rating: IP67 (dust/water resistant)
Industrial-grade manual override valve featuring positive detent positioning for secure state retention. The chrome-plated brass rotary knob provides 500,000+ cycle durability with corrosion-resistant construction. Requires no external power source, making it ideal for emergency systems and maintenance bypass operations. Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Production line emergency stop override systems
- Mobile hydraulic equipment manual control stations
- Cleanroom pneumatic tool isolation
- Agricultural machinery safety lockouts
- Railway brake system test points
Installation note:
Apply thread sealant on NPT ports (not required for G-series).
For vertical mounting, orient arrow marking upward.
Perform monthly knob rotation exercises during idle periods to maintain seal lubrication.
| Property | Property Value |
|---|---|
| sku | CM3PL06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
