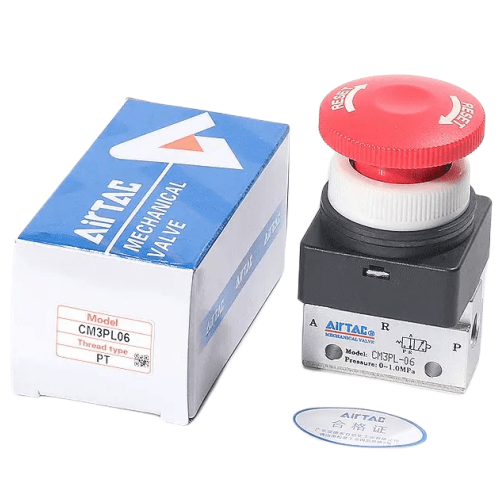

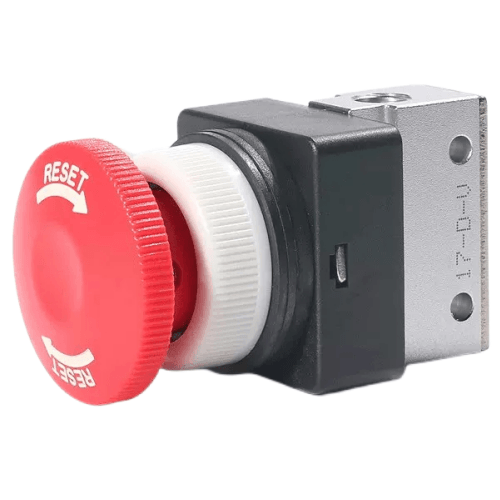

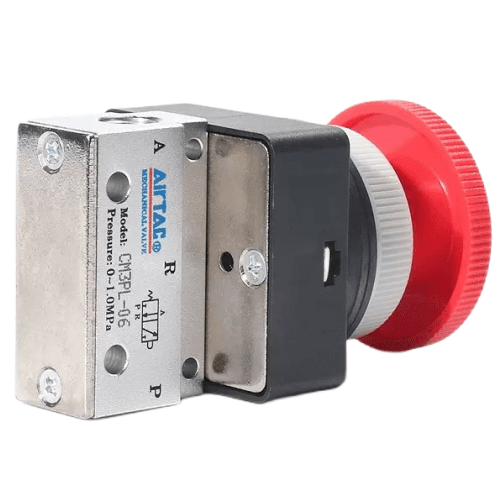

Airtac CM3PL Detent Rotary Button Type Mechanical Valve CM3PL06-P2
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for versatile application scenarios.
3. Poppet valve structure ensures superior sealing performance, smooth shifting action, and maintenance-free lubrication.
4. Supports multi-position mounting configurations for flexible installation and operation.
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life and enhanced operational reliability.
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard button caps against accidental actuation and mechanical interference, ensuring fail-safe performance.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PL Park & Rotate Button Mechanical Valve
AirTAC CM3PL06-P2 Detented Rotary Button Mechanical Valve Specifications
- Model: CM3PL06-P2
- Type: 3-position detented rotary button (manual override)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Flow capacity: 850 NL/min (ANR)
- Actuation force: 3.5–5.5 N·m torque requirement
- Valve body material: Reinforced POM polymer
- Seal material: Oil-resistant NBR
- Temperature range: -5℃ to 70℃ (23℉ to 158℉)
- Mounting style: Panel mount with M5 threaded locknut
- Weight: 320g ±5g (including mounting hardware)
- Dimensions: 60mm(L) × 40mm(W) × 55mm(H)
- Position indicator: Dual-color rotary position marker
- IP rating: IP67 (dust/water resistant)
Manual override valve with positive detent positioning, designed for precise pneumatic circuit control in harsh environments. Features tactile feedback with 120° rotation span between positions. The corrosion-resistant POM construction ensures durability in chemical exposure scenarios. Integrated O-ring groove allows direct manifold mounting.
- Emergency stop override in automated production lines
- Maintenance bypass control for robotic arms
- Manual mode selection in packaging machinery
- Pneumatic system training equipment
- Mobile hydraulic lockout systems
Installation protocol:
Apply thread sealant on port connections (PTFE tape not recommended).
Ensure 15° maximum angular deviation from vertical mounting plane.
Perform monthly detent lubrication with silicone-free grease.
| Property | Property Value |
|---|---|
| sku | CM3PL06-P2 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
