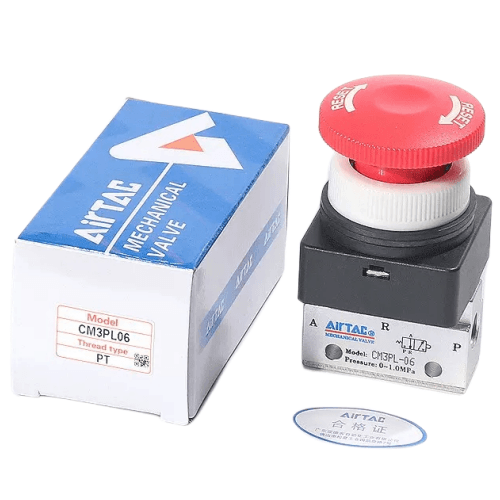

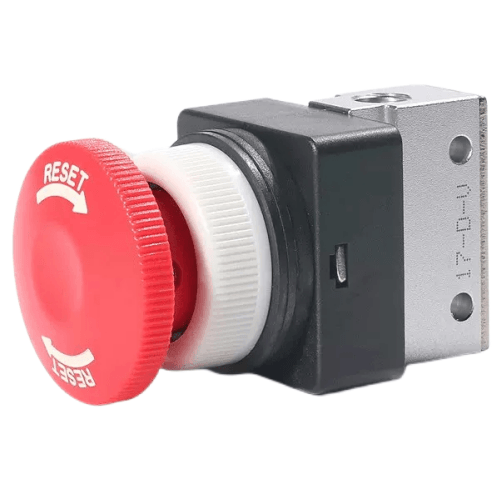

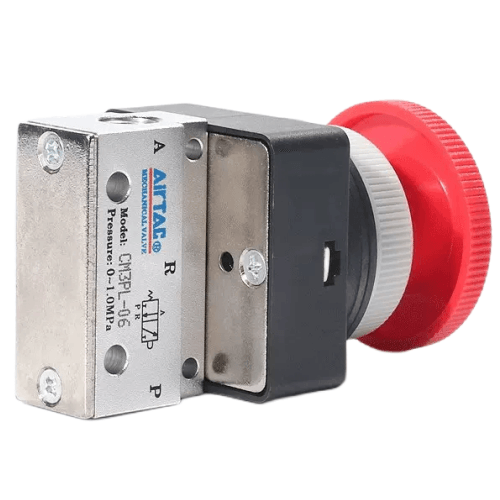

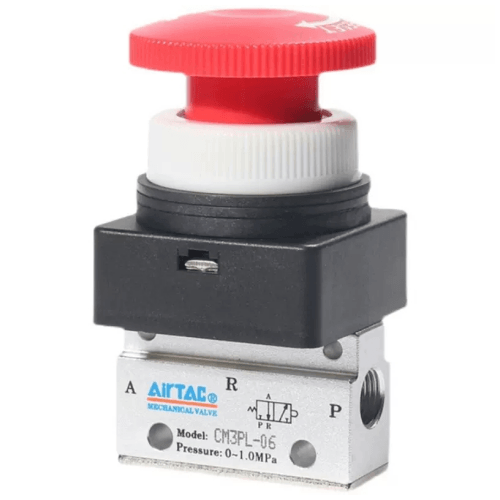

Airtac CM3PL Detent Rotary Button Type Mechanical Valve CM3PL08
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for versatile application scenarios.
3. Poppet valve structure ensures superior sealing performance, smooth shifting action, and maintenance-free lubrication.
4. Supports multi-position mounting configurations for flexible installation and operation.
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life and enhanced operational reliability.
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard button caps against accidental actuation and mechanical interference, ensuring fail-safe performance.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PL Park & Rotate Button Mechanical Valve
AirTAC CM3PL08 Detent Rotary Button Mechanical Valve Specifications
- Model: CM3PL08
- Type: 3-position detent rotary mechanical valve (Lockable)
- Port configuration: 5 ports / 3 positions
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–0.8 MPa
- Max flow rate: 850 L/min (ANR)
- Actuation type: Manual rotary knob with detent mechanism
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Weight: 298g ±5g
- Dimensions: 50mm(W) × 50mm(H) × 76mm(L)
- Mounting style: Sub-base or direct piping
- Position indication: Colored position markers (Red/Yellow/Green)
- Detent force: 3.5N·m torque required for position change
Manual override valve with positive detent positioning, designed for stable pneumatic circuit control in harsh environments. Features anti-vibration locking mechanism and 360° rotatable knob for flexible mounting orientations. The chrome-plated brass stem ensures smooth operation even after prolonged use.
- Emergency stop override in production line systems
- Mode selection in packaging machinery
- Manual control stations for material handling equipment
- Safety circuit isolation in press machines
- Position locking in automated assembly jigs
Installation note:
Apply thread sealant only on male threads (not required for port adapters).
For vertical mounting, ensure detent arrow points upward. Lubricate O-rings
with silicone grease (ASGB-01) during maintenance.
| Property | Property Value |
|---|---|
| sku | CM3PL08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
