Airtac CM3Y Rocker Arm Type Mechanical Valve CM3Y06G
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations optimized for varied working conditions;
3. Poppet valve design ensures excellent sealing performance with smooth actuation and maintenance-free operation without lubrication;
4. Flexible multi-position mounting options enable simplified installation and usage;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life, enhanced reliability, and operational stability;
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard push buttons against accidental impacts and prevent unintended actuation, ensuring enhanced operational safety.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3Y Rotary Lever Type Mechanical Valve
AirTAC CM3Y06G Lever-Operated Mechanical Valve Specifications

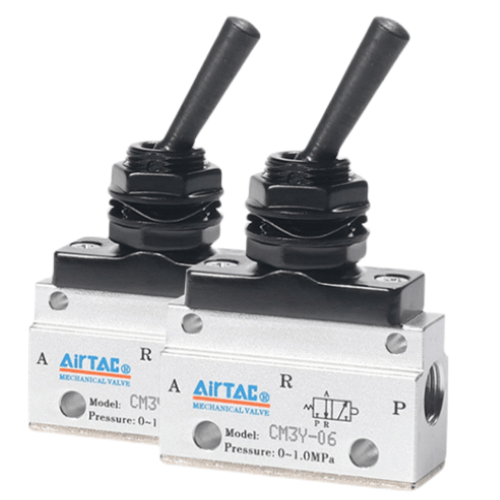

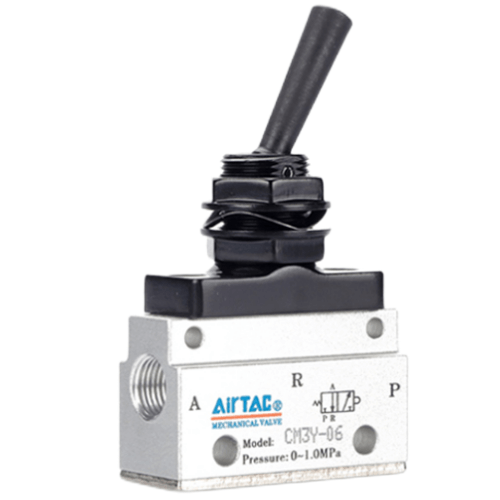

- Model: CM3Y06G (Roller Lever Type)
- Valve type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.1–0.7 MPa
- Max flow rate: 450 NL/min (at 0.5 MPa)
- Actuation force: 2.5N ±0.5N (lever operation)
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber (oil & heat resistant)
- Temperature range: -10℃ to 80℃ (non-freezing)
- Weight: 215g ±5g
- Dimensions: 50mm(L) × 30mm(W) × 40mm(H)
- Mounting: Direct piping or sub-base (ISO 15407-1 compliant)
- Protection rating: IP67 (dust/water resistant)
Robust mechanical valve with roller lever for positive-position detection in harsh environments. Features anti-vibration design with stainless steel spring and wear-resistant roller bearing. The 90° lever rotation provides tactile feedback for precise machine sequencing. Requires 5-15μm filtered compressed air.
- Safety door interlocks in injection molding machines
- Position confirmation in CNC tool changers
- Material handling system limit switches
- Packaging line jam detection systems
- Automated warehouse shuttle controls
Installation note:
Mount lever arm perpendicular to actuation direction. Lubricate roller bearing quarterly with ISO VG32 hydraulic oil.
Maintain 2-3mm clearance between lever tip and actuator plate.
| Property | Property Value |
|---|---|
| sku | CM3Y06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
