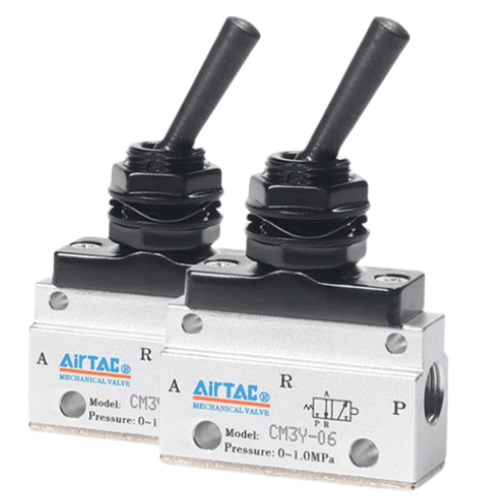

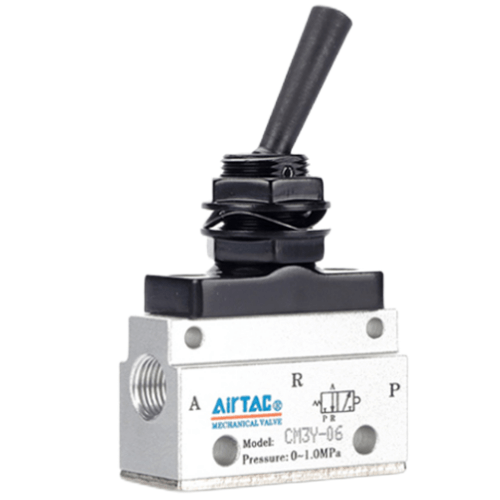

Airtac CM3Y Rocker Arm Type Mechanical Valve CM3Y08G
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations optimized for varied working conditions;
3. Poppet valve design ensures excellent sealing performance with smooth actuation and maintenance-free operation without lubrication;
4. Flexible multi-position mounting options enable simplified installation and usage;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life, enhanced reliability, and operational stability;
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard push buttons against accidental impacts and prevent unintended actuation, ensuring enhanced operational safety.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3Y Rotary Lever Type Mechanical Valve
AirTAC CM3Y08G Lever-Operated Mechanical Valve Specifications
- Model: CM3Y08G
- Type: 3/2-way lever-operated mechanical valve (spring return)
- Port size: PT1/4 (G1/8 adapter optional)
- Operating pressure: 0.1–0.8 MPa
- Max flow rate: 850 L/min (ANR)
- Valve body material: Anodized aluminum alloy
- Seal material: NBR/FKM (optional)
- Operating temperature: -20℃ to 80℃
- Actuation force: ≤15N lever pressure
- Response time: ≤0.15 sec
- Weight: 250g ±5%
- Dimensions: 60mm(L) × 35mm(W) × 40mm(H)
- Mounting: Panel or subplate (ISO 15407-1 compliant)
- Protection rating: IP67 (dust/water resistant)
Manual override valve with positive mechanical engagement, featuring a corrosion-resistant aluminum body and ergonomic lever design. The dual-pivot roller mechanism ensures smooth operation with tactile feedback. Requires 5μm filtered compressed air (lubricated or non-lubricated). Includes anti-vibration lock nut for industrial environments.
- Emergency stop override in automated production lines
- Manual control in packaging machinery (e.g., carton sealers)
- Process control in food-grade pneumatic systems
- Safety bypass in press machine tooling
- Mobile equipment maintenance mode activation
Installation note:
Mount with ≤0.5mm panel thickness using M4 screws (torque ≤1.2N·m).
Lubricate pivot points every 50,000 cycles with ISO VG32 hydraulic oil.
Avoid lateral force >20N on lever during operation.
| Property | Property Value |
|---|---|
| sku | CM3Y08G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
