Airtac GVR Vacuum Pressure Regulating Valve GVR20008JN
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Stable pressure regulation with minimal pressure deviation and excellent pressure characteristics;
3. Supports both panel mounting and optional fixed bracket installation.
Category: Vacuum Regulating Valve, Brand: AIRTAC, Series: GVR

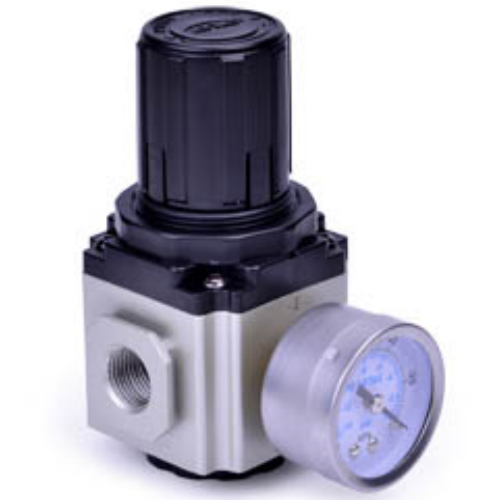

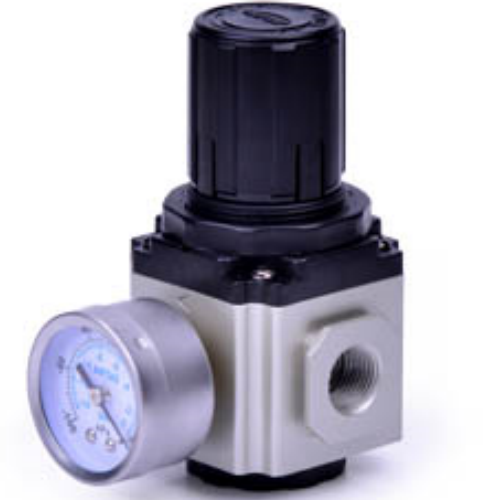

AirTAC GVR Vacuum Regulator Valve GVR20008JN Specifications
- Model: GVR20008JN
- Type: Vacuum pressure regulating valve (precision adjustment type)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: -100 kPa to 0 MPa (vacuum)
- Maximum flow rate: 200 L/min
- Effective sectional area: 28 mm²
- Adjustment knob rotation: 270°±10°
- Lock mechanism: Push-pull locking with scale indicator
- Body material: Aluminum alloy (anodized finish)
- Seal material: FKM fluorocarbon rubber
- Temperature range: -10℃ to 60℃
- Weight: 820 g ±5%
- Dimensions: 120mm(L) × 60mm(W) × 80mm(H)
- Mounting orientation: Any (360° rotatable gauge)
- Vibration resistance: 1.5mm amplitude at 10-55Hz
- Compliance: RoHS 2.0, REACH
Precision vacuum pressure regulator featuring micron-level adjustment capability with tactile feedback knob. Integrated pressure gauge port and anti-vibration structure ensure stable vacuum maintenance. The dual-chamber design prevents backflow contamination, with FKM seals for chemical resistance in harsh environments.
- PCB/SMT component pick-and-place vacuum systems
- Medical suction device pressure control
- Vacuum forming machine pressure regulation
- Automated packaging line suction cup arrays
- Semiconductor wafer handling equipment
Installation note:
For optimal performance, install within 1m of vacuum source.
Use 2-wrench method during plumbing - hold body with 19mm wrench while tightening fittings.
Perform initial calibration at 20-25℃ ambient temperature.
| Property | Property Value |
|---|---|
| sku | GVR20008JN |
| Port Size | PT1/4 |
