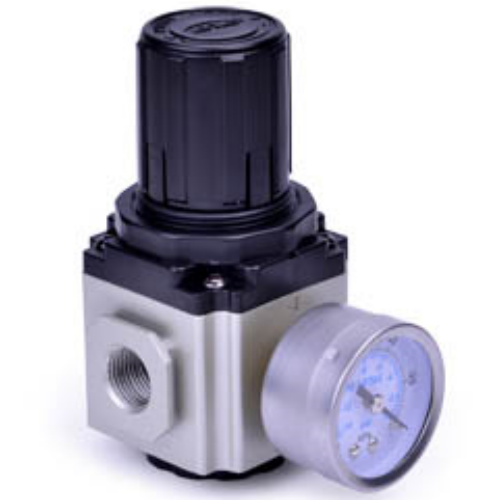

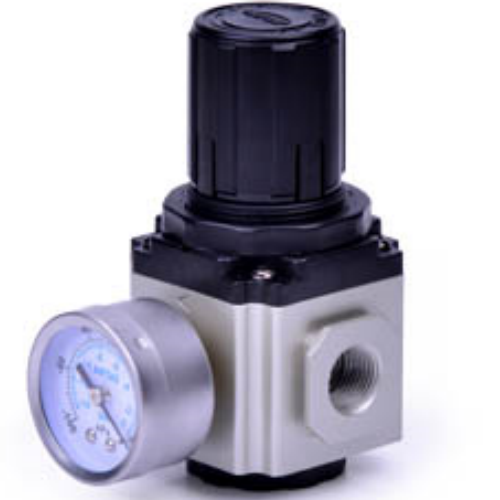

Airtac GVR Vacuum Pressure Regulating Valve GVR20008N
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Stable pressure regulation with minimal pressure deviation and excellent pressure characteristics;
3. Supports both panel mounting and optional fixed bracket installation.
Category: Vacuum Regulating Valve, Brand: AIRTAC, Series: GVR
AirTAC GVR Series Vacuum Regulator GVR20008N Technical Specifications
- Model: GVR20008N
- Type: Vacuum pressure regulating valve (mechanical spring type)
- Port size: PT1/4 (NPT1/4 optional)
- Operating pressure range: -100 kPa to 0 MPa (relative pressure)
- Maximum vacuum flow rate: 200 L/min
- Adjustment knob rotation: 270°±10°
- Body material: Anodized aluminum alloy (A6063)
- Seal material: Fluorinated rubber (FKM) for vacuum integrity
- Operating temperature: 0℃ to 60℃ (non-freezing)
- Weight: 520g ±5% (including fittings)
- Dimensions: 82mm(L) × 65mm(W) × 78mm(H)
- Thread torque specification: 12-15 N·m
- Pressure gauge interface: M5×0.8 (dual gauge ports)
- Vibration resistance: 2-25Hz/1.6mm amplitude
Precision vacuum regulator featuring dual-chamber design with silicone diaphragm for sensitive pressure control. Equipped with lockable adjustment knob and integrated debris filter (40μm stainless mesh). The T-handle design allows tool-free adjustment with tactile torque feedback, while the dual pressure gauge ports enable simultaneous input/output monitoring.
- Vacuum gripping systems for robotic material handling
- Semiconductor wafer processing equipment
- Medical suction device pressure stabilization
- Packaging machine vacuum cup arrays
- PCB depaneling machine vacuum circuits
- Glass tempering furnace vacuum systems
Installation protocol:
Mount vertically with arrow direction matching vacuum flow.
Always install downstream of vacuum generator (minimum 150mm distance).
Perform initial calibration at 20℃ ambient temperature.
Replace FKM seals annually in continuous operation environments.
| Property | Property Value |
|---|---|
| sku | GVR20008N |
| Port Size | PT1/4 |
