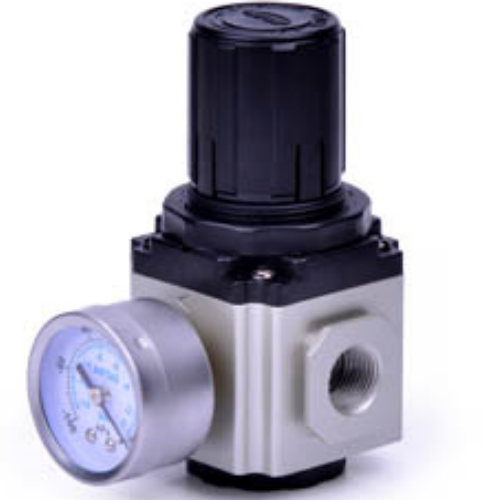

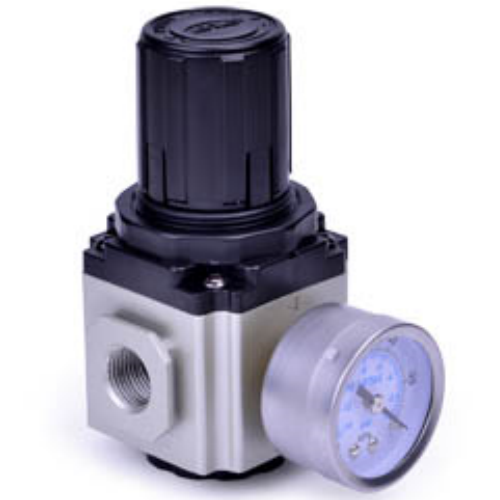

Airtac GVR Vacuum Pressure Regulating Valve GVR30008J
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Stable pressure regulation with minimal pressure deviation and excellent pressure characteristics;
3. Supports both panel mounting and optional fixed bracket installation.
Category: Vacuum Regulating Valve, Brand: AIRTAC, Series: GVR
AirTAC GVR Series Vacuum Regulator GVR30008J Technical Specifications
- Model: GVR30008J
- Type: Precision vacuum pressure regulator with gauge
- Port size: PT1/4 (BSPP thread)
- Operating pressure range: -100 kPa to 0 MPa (full vacuum to atmospheric)
- Maximum vacuum flow: 300 L/min
- Pressure adjustment range: -95 kPa to -10 kPa (rotary knob with lock)
- Body material: Anodized aluminum alloy
- Diaphragm material: Fluororubber (FKM)
- Temperature range: -10℃ to 60℃ (non-freezing)
- Weight: 320g ±5g
- Dimensions: 80mm(H) × 60mm(W) × 40mm(D)
- Gauge range: Dual scale (-100-0 kPa / 0-76 mmHg)
- Port orientation: Bottom inlet / side outlet
- Protection rating: IP40 (dust protected)
High-sensitivity vacuum regulator featuring zero-point locking mechanism and anti-vibration gauge. The corrosion-resistant design incorporates a large surface area diaphragm for stable pressure control in suction applications. Includes built-in silencer for noise reduction during vacuum release.
- PCB handling vacuum pick-and-place systems
- Medical suction device pressure management
- Vacuum molding machine pressure regulation
- Automated packaging line vacuum grippers
- Semiconductor wafer holding systems
Installation guidelines:
Install downstream of vacuum generator with minimum 150mm straight tubing before regulator.
Use 5μm filter upstream. Avoid mounting in orientations where gauge faces downward.
Bleed screw requires 2.5mm hex key for maintenance.
| Property | Property Value |
|---|---|
| sku | GVR30008J |
| Port Size | PT1/4 |
