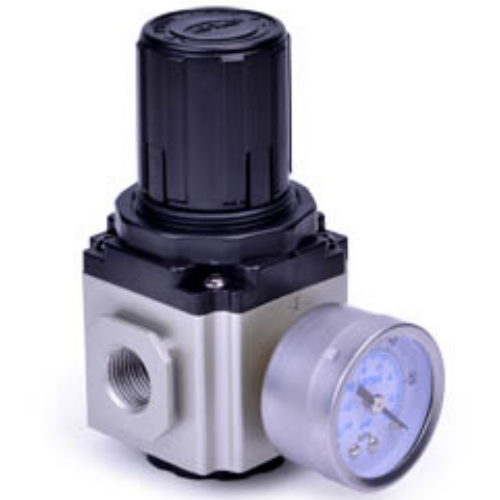

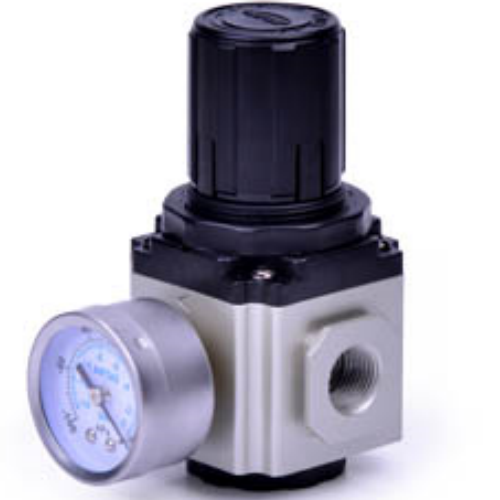

Airtac GVR Vacuum Pressure Regulating Valve GVR30008N
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Stable pressure regulation with minimal pressure deviation and excellent pressure characteristics;
3. Supports both panel mounting and optional fixed bracket installation.
Category: Vacuum Regulating Valve, Brand: AIRTAC, Series: GVR
AirTAC GVR Series Vacuum Regulator GVR30008N Technical Specifications
- Model: GVR30008N
- Type: Precision vacuum pressure regulator with gauge
- Port size: PT1/4 (NPT1/4 optional)
- Operating pressure range: -100kPa to 0.8MPa
- Vacuum range: -100kPa to 0kPa (adjustable)
- Maximum flow rate: 1,000 L/min (ANR)
- Body material: Anodized aluminum alloy
- Seal material: Fluorinated rubber (FKM)
- Temperature range: -10℃ to 60℃ (non-freezing)
- Pressure gauge: Dual scale (MPa & psi) with ±2% accuracy
- Weight: 620g ±5%
- Dimensions: 102mm(H) × 70mm(W) × 62mm(D)
- Thread torque: 10-15 N·m (port connections)
- Protection rating: IP40 (dust protected)
- Compliance: RoHS 2.0, REACH
High-precision vacuum/pressure dual-purpose regulator featuring a corrosion-resistant aluminum body and vacuum-optimized FKM seals. The integrated dual-scale gauge enables simultaneous monitoring of input/output pressures. Designed for stable vacuum maintenance in critical applications, with a unique anti-clogging mechanism for particle-prone environments.
- Semiconductor wafer handling systems
- Vacuum molding machine pressure control
- Medical suction equipment regulation
- Automated PCB assembly vacuum pick-up
- Food packaging vacuum sealing systems
Installation guidelines:
Mount vertically with gauge facing forward. Always install a 5μm filter upstream.
For vacuum applications, use counter-clockwise rotation to increase vacuum level.
Allow 15mm clearance behind adjustment knob for maintenance access.
| Property | Property Value |
|---|---|
| sku | GVR30008N |
| Port Size | PT1/4 |
