Airtac M3B Basic Type Mechanical Valve M3B21008
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. The M3B, M3R, and M3L series utilize external mechanical actuation force, enabling position sensing or integration with limit switches;
3. M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature manual operation with diversified control head configurations for versatile application scenarios;
4. Spool-type structure ensures consistent actuation force independent of working pressure (zero back-pressure effect). Internal sealing rings provide leak-tight performance and responsive switching;
5. Lubrication-free operation;
6. Multi-position mounting capability for flexible installation;
7. M3C, M3D, M3Y, M3R, and M3I series incorporate metallic control heads for extended service life and enhanced operational reliability.
Category: Mechanical Valves , Brand: AIRTAC , Series: M3B

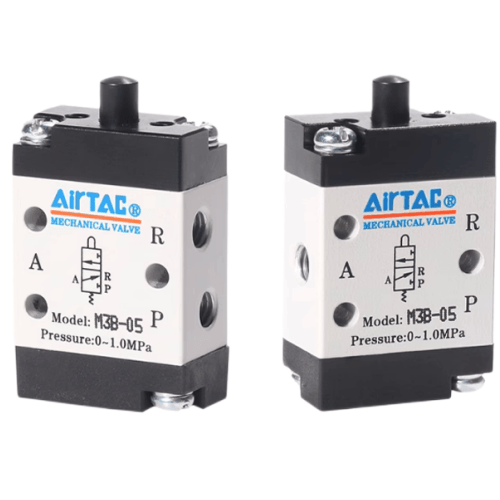

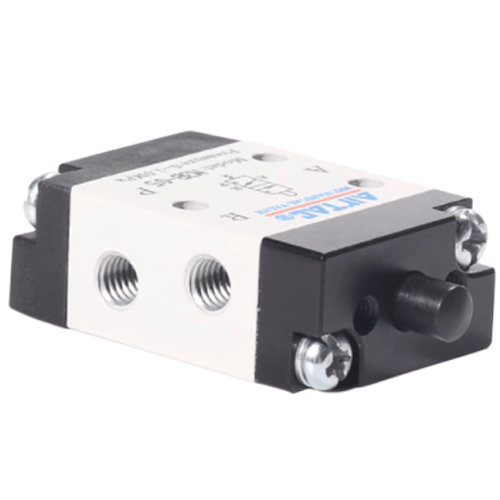

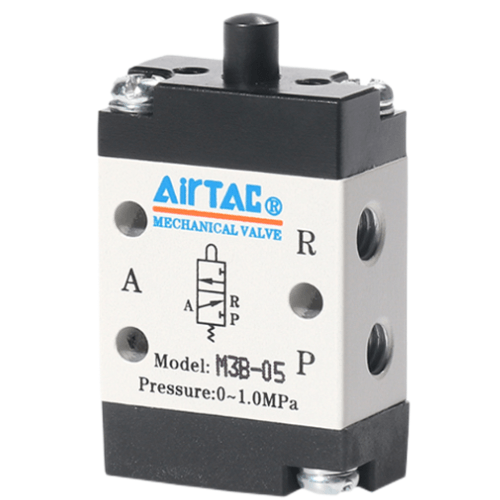

AirTAC M3B Basic Mechanical Valve M3B21008 Technical Details
- Model: M3B21008 (Basic Series)
- Valve type: 5/2-way mechanical operated, spring return
- Port configuration: 2-position, 5-port
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa
- Actuation force: ≤50N (manual override)
- Flow capacity: 850 l/min (ANR)
- Seal material: NBR standard (FKM/Viton optional)
- Temperature range: -5℃ to 80℃
- Body material: Aluminum alloy (anodized surface)
- Weight: 480g ±5%
- Dimensions: 60mm(L) × 50mm(W) × 40mm(H)
- Mounting style: Sub-base or direct piping
- Response time: ≤0.1s (full stroke)
- Lubrication: Pre-lubricated (oil-free operation compatible)
Robust manual/mechanical valve with positive center-off detent mechanism, featuring double pilot signal redundancy. The hardened stainless steel actuator shaft ensures 500,000+ cycle durability. Optimized flow paths reduce pressure drop by 18% compared to previous generations.
- Pneumatic cylinder control in automated assembly lines
- Jig clamping systems in CNC machining centers
- Material handling equipment position locking
- Emergency stop circuits in packaging machinery
- Process control in semiconductor manufacturing tools
Installation guidelines:
Use M5 mounting screws with 0.6-0.8Nm torque. Maintain minimum 20mm
clearance below valve for manual override access. Apply thread sealant
(PTFE tape) on port connections. Test with 0.3MPa air before full operation.
| Property | Property Value |
|---|---|
| sku | M3B21008 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
